TNN1IXCS
< tbody >

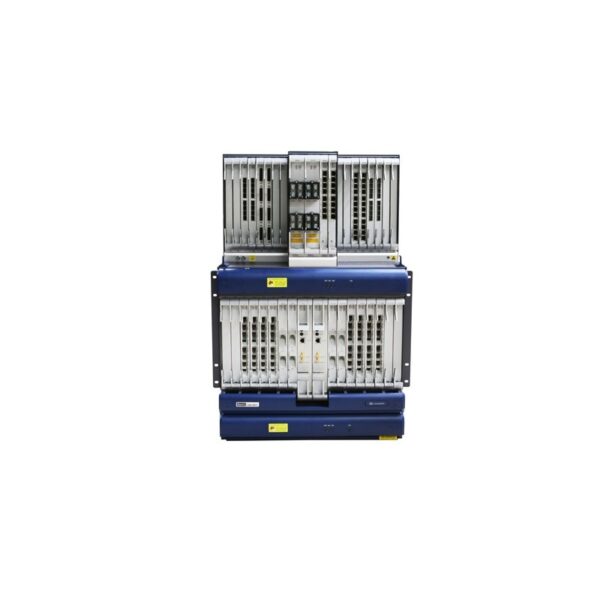

| Model: | TNN1IXCS – Huawei OSN 7500 II Main Equipment |
| Detail: | Infinite Cross-connect and Synchronous Timing Board |
Description
TNN1IXCS Specification |
||||
| Part Number | 03022LJU | |||
| Model | TNN1IXCS | |||
| Description | Infinite Cross-connect and Synchronous Timing Board | |||
| Discount Category | Main Equipment | |||
| Product Line | Networking | |||
| Sub Product Family | MSTP | |||
| Product Series | OSN 7500 II | |||
| UOM | PCS | |||
| Net Dimension(D*W*H mm) | 271*40*294 | |||
| Typic Power(W) | 0 | |||
|
Huawei OSN 7500 II Specification |
||||
| Dimensions | 800mm (H) x 496mm (W) x 295mm (D) | |||
| Switch Capacity | Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s | |||
| Service Slots | 32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot | |||
| Supported Interface | OTN interface | OTU-1, OTU-2/2e, OTU-3(40G, compliant with OTL3.4 standard) | ||
| Ethernet interface | FE/GE/10GE/40GE | |||
| SDH interface | STM-1/4/16/64 | |||
| PDH interface | E1/T1, E3/T3, E4 | |||
| ATM interface | E1, STM-1 | |||
| WDM interface | 40 DWDM wavelengths, compliant with ITU-T G.694.1
8 CWDM wavelengths, compliant with ITU-T G.694.2 |
|||
| SAN interface | FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200 | |||
| PCM interface | FXS/FXO, 2/4W VF & E&M
X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional |
|||
| Other interface | DDN, Video | |||
| Networking Mode | Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking
Supporting WDM networking Supporting single-fiber bidirectional transmission |
|||
| Power Supply | -48V DC/-60V DC | |||
| Operation
Environment |
Temperature | Relative Humidity | ||
| Long term | 0ºC ~ 45ºC | 5% ~ 85% | ||
| Short term | -5ºC ~ 55ºC | 5% ~ 95% | ||
| Ethernet Feature | E-Line and E-LAN, QinQ
MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) ETH PWE3, TDM PWE3, A TM/IMA PWE3 IGMP Snooping V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP |
|||
| PCM Feature | Voice or data Conference/Meeting,P2MP,MP2MP
FXO/FXS mode can be set by software E&M Interface voltage can be set by software (-48V/-12V) E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5) |
|||
| QoS | Hierarchical QoS scheduling and traffic shaping
DiffServ mode based on traffic classification, eight priority queues Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL Committed access rate (CAR), shaping based on port scheduling priority PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing Tail drop and weighted random early detection (WRED) |
|||
| OAM | MPLS-TP OAM | LSP/PW OAM:
CC, LB, LT AIS, RDI LM, DM LCK, TST CSF |
||
| MPLS OAM | LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM
PW OAM: CES PW VCCV |
|||
| Ethernet OAM | ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819) | |||
| Protection | Equipment-level Protection | Universal Cross-Connect, System Control and Clock Processing Board 1+1 backup and power 1+1 backup | ||
| MPLS-TP based Service
Protection |
LSP/PW Linear protection, Ring protection
Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT |
|||
| SDH based Service
Protection |
2/4 fiber MS-SP Ring;
1+1/1:n (n<=14) Linear MSP SNCP/SNCTP Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE |
|||
| ASON | Distributed restorable rerouting protection
5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services Based on VC-4 and VC-12 granularity |
|||
| Synchronization | Both Ethernet and SDH networks supporting clock synchronization
Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) Two external clock inputs/outputs (2 MHz or 2 Mbit/s) Two external time signals (1pps+TOD) |
|||
