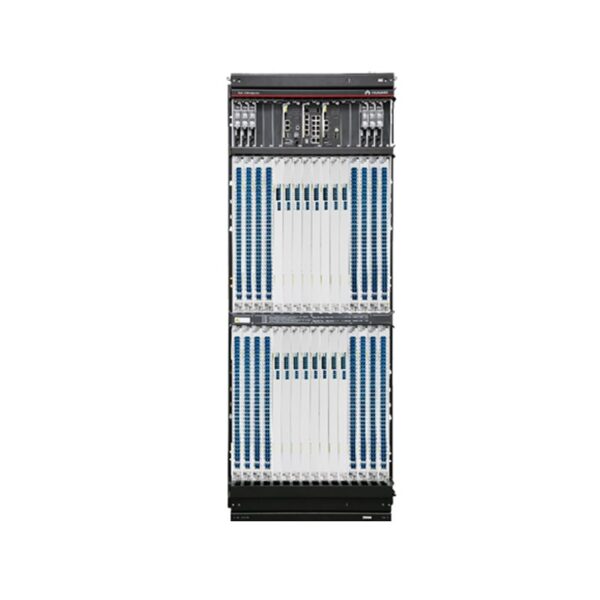

Huawei OptiX OSN 9800 P32 Specifications |
Subrack dimensions (mm) | 1390 (H) x 496 (W) x 315 (D) (without cabinet) |
Suitable cabinet | ETSI 300 cabinets, such as A63B |
Number of slots for service boards | 32 |
Switching capability | Optical | 1 to 32-degree reconfigurable optical add/drop multiplexer (ROADM) |
Electrical | N/A |
Max. number of wavelengths | Fixed grid: 96 wavelengths @50 GHz grid Flex grid: The maximum number of wavelengths is related to the width of the flex channel. |
Channel spacing | Fixed grid: 50 GHz grid/100 GHz grid Flex grid: Supports channel spacing designs, and the minimum can be set to 6.25 GHz. |
Center wavelength range | DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1) |
Topology | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh |
Redundancy and protection | Network level protection | Optical line protection |
Equipment level protection | Power redundancy, fan redundancy, communication control and clock processing unit redundancy |
Optical power management | IPA |
Easy O&M | Optical Doctor System (OD), Fiber Doctor System (FD) |
Synchronization | Synchronous Ethernet clock IEEE 1588v2 ITU-T G.8275.1 |
Power Supply | Nominal working voltage: -48V DC/-60V DC Working voltage range: -48 V DC: -40 V to -57.6 V -60 V DC: -48 V to -72 V |
Operation environment | Subrack temperature: Long-term operation: 5°C (41°F) to 40°C (104°F) Short-term operationba: -5°C (23°F) to 45°C (113°F) Relative humidity: Long-term operation: 5% to 85% Short-term operationa: 5% to 90% |
Mean Time To Repair (MTTR) | 4 hours |
Mean Time Between Failure (MTBF) | 64.37 years |
a: Short-term operation means that the continuous operating time does not exceed 96 hours and the accumulated time per year does not exceed 15 days. |
