Description

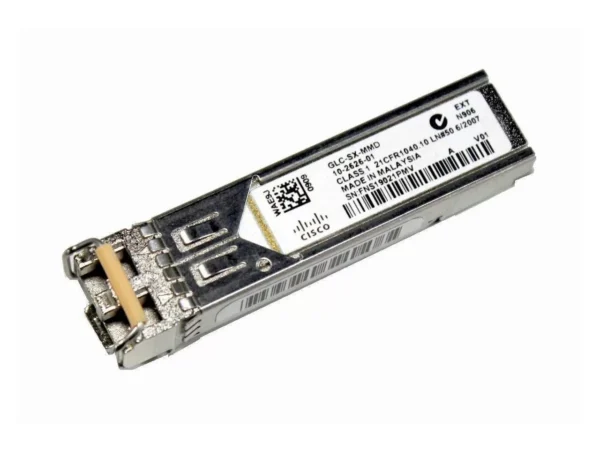

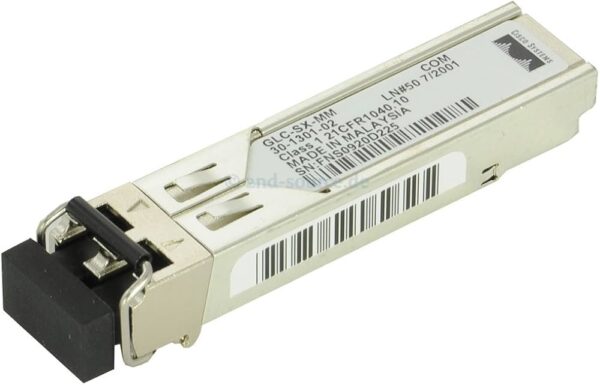

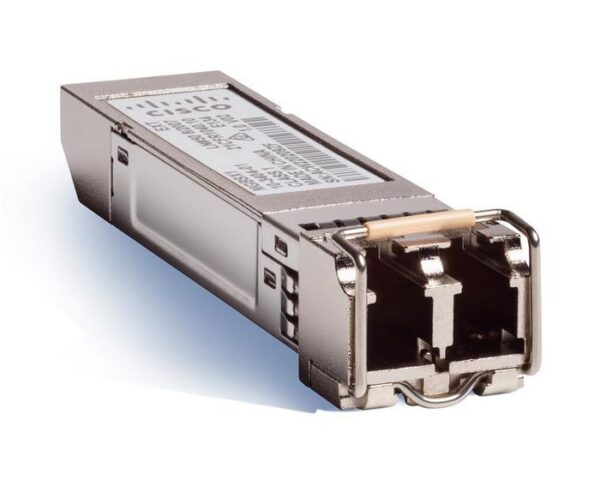

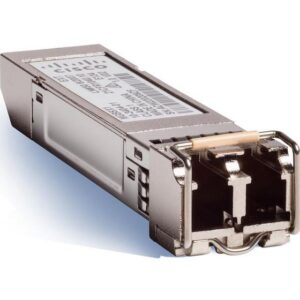

Specifically, the Cisco GLC-SX-MMD is a 1000BASE-SX SFP transceiver module designed for short-wavelength multimode fibre (MMF) Gigabit Ethernet and 1G Fibre Channel applications. Furthermore, operating at 850nm, it provides a cost-effective, high-performance solution for campus and data centre fibre connections.
Furthermore, the GLC-SX-MMD SFP transceiver is fully compliant with the SFP Multi-Source Agreement (MSA) and IEEE 802.3z standards. Moreover, it features Digital Diagnostic Monitoring (DDM/DOM) in compliance with SFF-8472, enabling real-time monitoring of optical performance without disrupting traffic.
In addition, this 1000BASE-SX SFP module supports up to 550m on OM2 MMF and up to 1000m on OM3 MMF. Additionally, it has been tested and verified to be fully compatible with Cisco network equipment, including Ethernet switches, routers, NICs, and media converters.
Specifically, the GLC-SX-MMD module consists of a VCSEL laser, PIN photodetector, LD controller, limiting amplifier, and digital diagnostic monitor. Furthermore, it is a Class 1 laser product compliant with FDA/CDRH and IEC-60825 standards. Additionally, it operates on a single 3.3V power supply with low power dissipation and a metal enclosure for reduced EMI.
GLC-SX-MMD Key Features
- To begin with, 1000BASE-SX SFP module operating at 850nm
- Furthermore, supports up to 1.25Gb/s data links
- Moreover, compliant with SFP MSA standard and IEEE 802.3z
- Additionally, digital diagnostics (DDM/DOM), compliant with SFF-8472
- In addition, hot-pluggable SFP footprint
- Furthermore, single 3.3V power supply with low power dissipation
- Additionally, duplex LC connector
- As a result, metal enclosure for lower EMI
- Finally, ROHS compliant and Lead-Free
SFP Port Cabling Specifications |
| Product | Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km)*** | Operating Distance (m) |
| 1000BASE-SX | 850 | MMF | 62.5 | 160 (FDDI-grade) | 220 (722 ft) |
| 62.5 | 200 (OM1) | 275 (902 ft) |
| 50 | 400 (400/400) | 500 (1,640 ft) |
| 50 | 500 (OM2) | 550 (1,804 ft) |
| 50 | 2000 (OM3) | 1000 (3281 ft) |
| 1000BASE-LX/LH | 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 50 | 400 | 550 (1,804 ft) |
| 50 | 500 | 550 (1,804 ft) |
| SMF | -** | – | 10,000 (32,821 ft) |
| 1000BASE-EX | 1310 | SMF | -** | – | 40,000 (131,234 ft) |
| 1000BASE-ZX (GLC-ZX-SMD) | 1550 | SMF | – | – | Approximately 70 km depending on link loss |
| 1000BASE-BX-U | 1310 | SMF | -** | – | 10,000 (32,821 ft) |
| 1000BASE-BX-D | 1490 | SMF | -** | – | 10,000 (32,821 ft) |
Similar Products
Frequently Asked Questions (FAQ)
Q. What fibre type does the GLC-SX-MMD use?
A. The GLC-SX-MMD uses multimode fibre (MMF) operating at 850nm. Specifically, it supports FDDI-grade, OM1, OM2, and OM3 cable types.
Q. What is the maximum distance of the GLC-SX-MMD?
A. On OM3 MMF (2000MHz*km), the GLC-SX-MMD supports up to 1000m. In contrast, on OM2 MMF it supports up to 550m.
Q. Does the GLC-SX-MMD support digital diagnostics?
A. Yes. Indeed, the GLC-SX-MMD features Digital Diagnostic Monitoring (DDM/DOM), compliant with SFF-8472 for real-time optical monitoring.
Q. Is the GLC-SX-MMD compatible with Cisco switches?
A. Yes. Indeed, the GLC-SX-MMD is fully tested and compatible with Cisco Ethernet switches, routers, NICs, and media converters.
