Description
What is the C9200L-48P-4G-E?

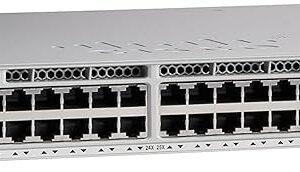

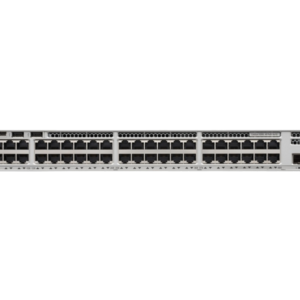

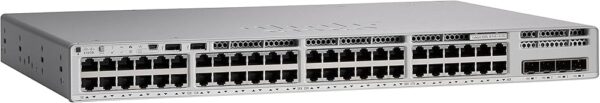

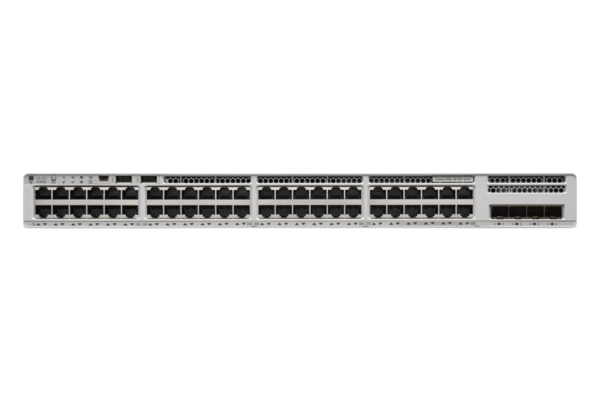

The C9200L-48P-4G-E is a Cisco Catalyst 9200L Series 48-port PoE+ switch designed for enterprise access and branch deployments. Furthermore, it features full PoE+ support, four 1G uplinks, and 104 Gbps switching capacity. As a result, it provides Layer 2/3 features, security, QoS, and SD-Access support via Cisco IOS XE.
Key Features
- To begin with, 48 x 10/100/1000 PoE+ downlink ports with PWR-C5-1KWAC power supply
- Additionally, 4 x 1G fixed SFP uplinks provide flexible uplink connectivity
- Furthermore, it delivers 104 Gbps switching capacity and 154.76 Mpps forwarding performance
- Moreover, 80 Gbps stacking bandwidth supports multi-switch stack deployments
- As a result, it includes 2 GB DRAM and 4 GB Flash for Cisco IOS XE network services
- Furthermore, the Network Essentials software supports advanced enterprise features, making models such as C9200L-48P-4G-E ideal for feature-rich access needs.
- Finally, fixed redundant fans and a compact 1 RU chassis improve reliability and space efficiency
Typical Use Cases
- To begin with, C9200L-48P-4G-E, Enterprise access layer with high-density PoE devices
- Additionally, Branch office deployments requiring reliable Layer 3 switching, where the model offers cost-efficiency and performance.
- Furthermore, Cisco SD-Access fabric edge node deployments
- Finally, Cost-effective upgrade from legacy Catalyst 2960-X/3850 platforms that benefit from the advanced features provided by the switch.
C9200L-48P-4G-E Datasheet Specification |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm. In technical specifications, the C9200L-48P-4G-E dimensions meet most rack requirements. |
| Weight C9200L-48P-4G-E | 4.35 Kg |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) C9200L-48P-4G-E | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 104 Gbps |
| Forwarding rate | 154.76 Mpps |
| Mean time between failures (hours) | 347,760 |
FAQ
Q: What is the difference between C9200L-48P-4G-E and C9200L-48P-4X-E?
A: The main difference is the uplink speed. The 4G-E has standard SFP uplinks, while the 4X-E has higher-speed SFP+ uplinks. Therefore, choose the 4X-E variant when uplink bandwidth to the distribution layer needs to be faster. If your deployment requires standard SFP uplinks, the 4G-E is the optimal model.
Q: Does it include a DNA license?
A: No. However, it requires a separate Cisco DNA Essentials or Advantage license for full Cisco DNA Center management, automation, and assurance features.
Q: Can the switches be stacked together?
A: Yes. Indeed, The Catalyst 9200L Series supports stacking with the optional C9200L-STACK-KIT=, providing up to 80 Gbps stack bandwidth across multiple units. Models such as the C9200L-48P-4G-E seamlessly integrate into enterprise stack environments.
Q: What PoE standards does it support?
A: Notably, this switch supports IEEE 802.3af (PoE) and 802.3at (PoE+) standards on all 48 downlink ports. Moreover, it is powered by the included PWR-C5-1KWAC power supply, making the switch suitable for high power PoE deployments.
