Description
What is the Cisco Catalyst C9300-48P-E?

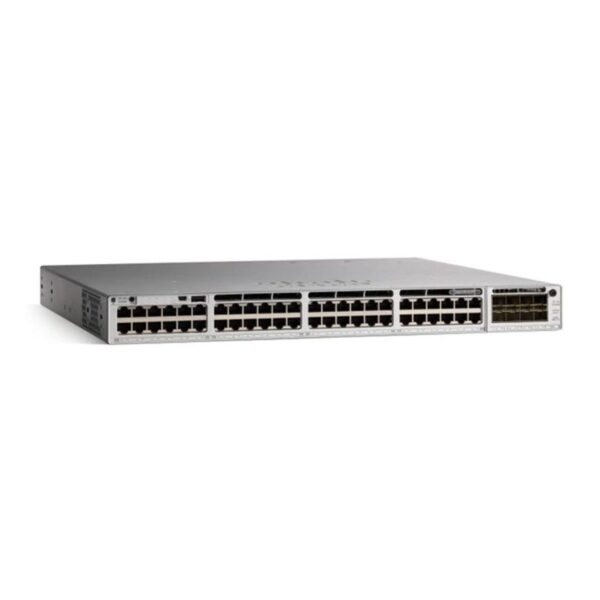

The Cisco Catalyst C9300-48P-E is a Cisco Catalyst 9300 Series 48-port PoE+ switch designed for enterprise campus deployments. Furthermore, it delivers 256 Gbps switching capacity, 437W PoE budget, and 480 Gbps StackWise-480 stacking bandwidth. In addition, it runs Cisco IOS XE with Network Essentials. As a result, it supports Layer 3 routing, SD-Access, IoT, and high-density wireless deployments.
Cisco Catalyst C9300-48P-E Key Features
- To begin with, 48 x 10/100/1000 PoE+ ports with 437W available PoE power
- Furthermore, 256 Gbps switching capacity and 154.76 Mpps forwarding rate
- In addition, Cisco StackWise-480 with 480 Gbps stacking bandwidth
- Moreover, 8 GB DRAM and 16 GB Flash for full IOS XE feature sets
- As a result, supports up to 32,000 MAC addresses and 32,000 IPv4 routes
- Additionally, network Essentials software with Layer 3 routing (OSPF, EIGRP, IS-IS)
- Finally, x86 CPU architecture for container hosting and third-party applications
Typical Use Cases
- To begin with, enterprise campus SD-Access fabric edge node
- Furthermore, high-density 802.11ac Wave 2 wireless access deployments
- Additionally, IoT device connectivity with policy-based segmentation
- Finally, stacked wiring closet infrastructure with 480 Gbps backbone
|
| Part Number C9300-48P-E | C9300-48P-E |
| Product Description C9300-48P-E | Catalyst 9300 48-port PoE+, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports | 48 POE+ |
| Default AC power supply C9300-48P-E | 715W AC |
| Available PoE power | 437W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-715WAC |
| Switching capacity Cisco Catalyst C9300-48P-E | 256 Gbps on 48-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU Cisco Catalyst C9300-48P-E | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
| Safety certifications Cisco Catalyst C9300-48P-E | ● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| Electromagnetic emissions certifications | ● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
FAQ
Q: What is the difference between Cisco Catalyst C9300-48P-E and Cisco Catalyst C9300-48P-A?
A: The C9300-48P-E runs Cisco IOS XE Network Essentials software, while the C9300-48P-A runs Network Advantage software. Furthermore, the Network Advantage version includes additional features like advanced routing protocols, MPLS, and segment routing. However, both models share the same hardware.
Q: Does the Cisco Catalyst C9300-48P-E support StackWise-480?
A: Yes. Indeed, the C9300-48P-E supports Cisco StackWise-480 stacking technology, providing up to 480 Gbps of stack bandwidth – the highest density stacking solution in its class for enterprise access switching.
Q: What PoE power does the C9300-48P-E provide?
A: The C9300-48P-E provides 437W of available PoE power with the default 715W AC power supply. Furthermore, it supports IEEE 802.3at PoE+ across all 48 ports for IP phones, wireless APs, and IoT devices.
Q: Can the C9300-48P-E run containers and third-party applications?
A: Yes. Indeed, the x86 CPU architecture and 8 GB DRAM of the Catalyst 9300 enable it to host containers and run third-party applications and scripts natively on the switch.
