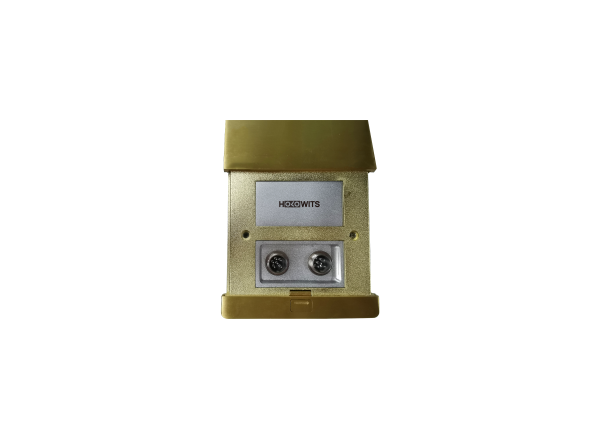

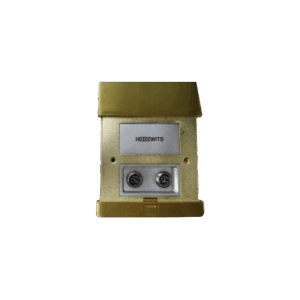

ACA-GE
Floor Embedded Extension Box
- Support network interface extension function.
- One in and three out, connect the unit and the controller, realize the network function.
- Adopt 100M/10M adaptive network transmission, realize hand-in-hand cascade.
- Each six-pin aviation connector supports IEEE802.3,IEEE802.3u, IEEE802.3x standards, and has strong anti-interference ability.
- The bottom box is waterproof.
- Description
Description
Technical Spec
| Total power consumption | 1.5W |
| Network port standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Power supply | Six-pin port power supply |
| Color | Gold |
| Bottom box size | 100×100×45mm (L×W×H) |
| Panel size | 124×120×7.6mm (L×W×H) |
| Weight | About 0.6kg |
| Installation method | Floor embedded |
| Working temperature | -10℃~+45℃ |
| Working humidity | 20%～80% relative humidity, no condensation |
