VMC-Input Card Series
2ch HDMI | DP | IP, 4ch DVI | SDI | VGA | HDMI | HDBaseT | Fiber, Input Card
- 【VMC-I2H-4K60】 2-Channels HDMI 4K60 Input Card
- 【VMC-I2DP-4K60】 2-Channels DP 4K60 Input Card
- 【VMC-I2IP-4K30】 2-Channels IP 4K30 Input Card
- 【VMC-I4D】 4-Channels DVI 1080p Input Card
- 【VMC-I4S】 4-Channels SDI 1080p Input Card
- 【VMC-I4V】 4-Channels VGA 1080p Input Card
- 【VMC-I4H-4K30】 4-Channels HDMI 4K30 Input Card
- 【VMC-I4HB-4K30】 4-Channels HDBaseT 4K30 Input Card
- 【VMC-I4F-4K30】 4-Channels Fiber 4K30 Input Card
- Description
Description
Technical Spec
VMC-I2H-4K60
| HDMI input | 2×HDMI connector |
| Input maximum resolution | 4096×2160@60Hz |
| Indicator lights | 2×green LED lights for HDMI insertion indication |
| Audio | 2×3.5mm audio jack, audio input interface |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 9W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-I2DP-4K60
| DP input | 2×DisplayPort(DP) female connector |
| Input maximum resolution | 4096×2160@60Hz |
| Indicator lights | 2×green LED lights for DP insertion indication |
| Audio | 2×3.5mm audio socket, audio input interface |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 10W |
| Dimensions (L x W x H) | 244.8 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-I2IP-4K30
| Interface type | 2×RJ45 socket |
| Input maximum resolution | 4096×2160@30Hz |
| Indicator lights | 6×green LED indicators for connection instructions and operation instructions |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 10W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-I4D
| DVI input | 4×DVI-D socket |
| Input maximum resolution | 1920×1200@60Hz |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 8W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-I4S
| SDI intput | 4×BNC socket |
| Input maximum resolution | 1920×1080@60Hz |
| Indicator lights | 4×green LED lights for access indication |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 20W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-I4V
| Analog signal input | 4×VGA connectors |
| Input maximum resolution | 1920 × 1200@60Hz |
| Audio | 4×3.5mm audio connectors for audio input |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 10W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |

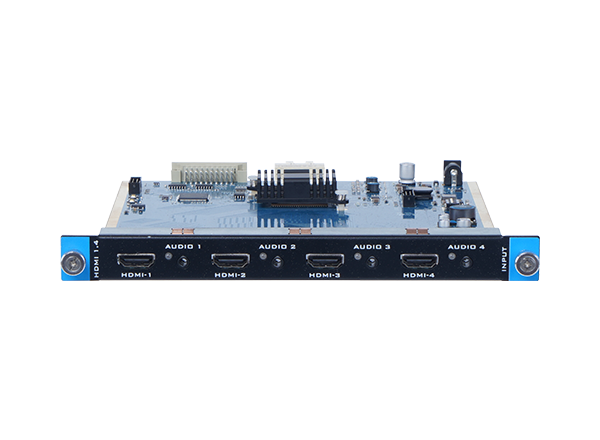

VMC-I4H-4K30
| HDMI input | 4×HDMI socket |
| Input maximum resolution | 4096×2160@30Hz |
| Indicator lights | 4×green LED lights for HDMI insertion indication |
| Audio | 4×3.5mm audio socket, audio input interface |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 8W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35Kg |
VMC-I4HB-4K30
| HDBaseT intput | 4×RJ45 socket, using Category 6 Ethernet cable, maximum distance 100 meters |
| Input maximum resolution | 4096×2160 @30Hz |
| Indicator lights | 8×Green LED lights for access indication |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 10W |
| POC power output | DC 12V |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
VMC-I4F-4K30
| Fiber input | 4×LC sockets, support single-mode fiber 20km multi-mode fiber 0.5km |
| Input maximum resolution | 4096×2160 @30Hz |
| Indicator lights | 8×Green LED lights for access indication |
| Ambient temperature | -10℃— +45℃ |
| Ambient humidity | 10%-80% |
| Power supply | DC 12V |
| Rated power | 15W |
| Dimensions (L x W x H) | 233 mm *202.8 mm *19.7 mm |
| Weight | 0.35kg |
