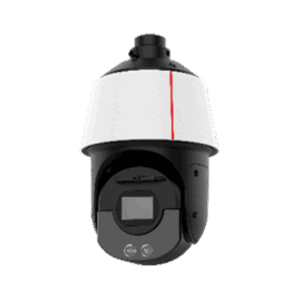

HWT-M6641-10-Z32-Wp-S

Class D Anti-corrosion 4MP IR AI PTZ Dome Camera

  • 1 TOPS computing power
  • Supports omni-data structuring, automatic tracking, behavior analysis, crowd flow analysis, target detection, person detection, object classification (motor vehicle, non-motorized vehicle, and pedestrian)
  • Backlight adaptation and overcast adaptation
  • 1/1.8″ CMOS sensor
  • 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
  • Class D corrosion resistance
  • Supports wiper, window heater
  • Supports gyroscope image stabilization
  • Support video quality diagnosis, including signal loss detection, snow noise detection, stripe noise detection, image blur detection, color cast detection, image freezing detection, gain imbalance detection, image shaking detection, and PTZ out-of-control detection
Categories: ,

Description

Technical Spec

Image sensor1/1.8″ CMOS; 4MP 2560 (H) x 1440 (V)
Shutter speedshutter: 1 / 25 – 1 / 100000;
Day/Night modeSupported; automatic ICR (default), color, B/W, and scheduled; sensitivity levels: high (default), medium, and low; Image triggering/Internal triggering
Minimum illuminationColor: 0.001 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed); 0 lux (infrared illuminators enabled)
White balanceAuto/Manual/OnePush
Digital noise reduction2D/3D noise reduction
WDR120 dB
Max IR range200 m
Max white light range30 m
Signal-to-Noise Ratio(SNR)>45dB
Storage portProvides one microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB).
Alarm port2 input ports and 1 output port
Network portOne RJ45 10/100 Mbit/s Ethernet port
Audio portOne-channel LINE IN or external MIC; one-channel LINE OUT
Power supply24 V AC and PoE (IEEE 802.3at)
Iris typeDC iris+Hall sensor
TargetTarget detection, target image enhancement, and target attribute recognition
PersonPerson detection and personal attribute recognition
IP RatingIP66
Intelligent encodingExtra265/264
