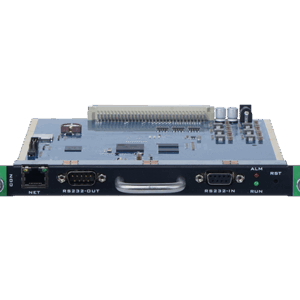

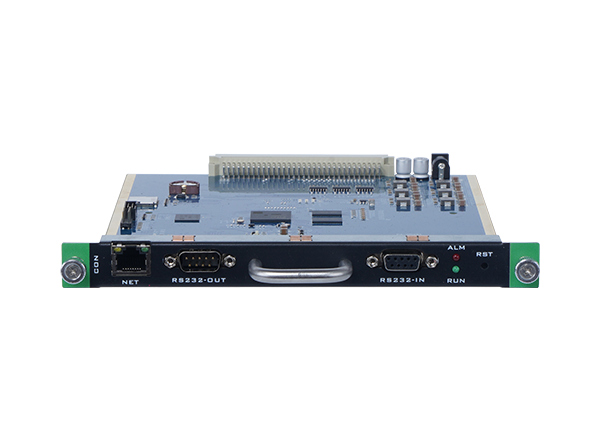

VMC-HC
Host Control Card
- Support network port communication
- Support RS232 input and RS232 output
- Support dual master backup function to improve device stability
- With status indicator light: 1) ALM: Alarm indicator light. If it is always on, it means there is an operation failure. If it is always off, it means it is normal; 2) RUN: Running indicator light. If it is always on, it means the board is running. If it is always off, it means there is a fault or abnormal operation.
- Description
Description
Technical Spec
| Reset button | 1*reset button |
| Output Interface | 1*Network port |
| Serial port | 1* RS-232 input port, 1* RS-232 output port |
| Technology Architecture | Centralized, private protocol |
| Power supply | DC 12V |
| Rated power consumption | 8W |
| Size (L*W*H) | 233mm*202.8mm*19.7mm |
| Weight | 0.35kg |
| Ambient temperature | 0℃— +45℃ |
| Ambient humidity | 10%-80% |
