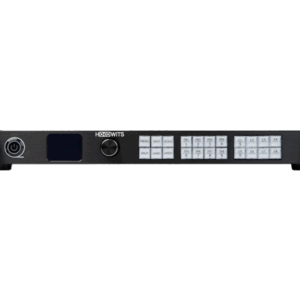

DPP Video Processor Series - Image 1
DPO-U Series
VMC-HC

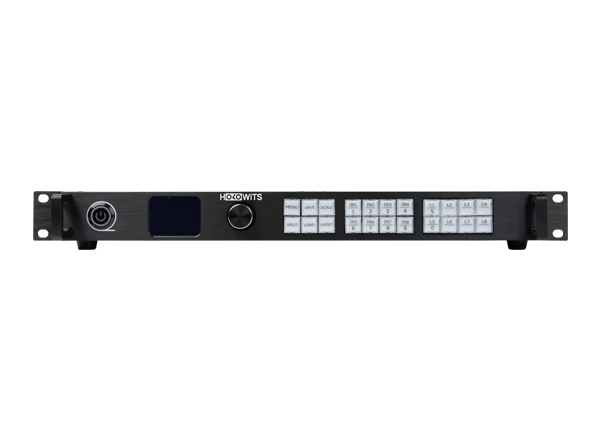

DPP Video Processor Series

4HD | 8HD | 5HD4K | 8HDS | 5HDI Ports Video Processor

  • 【DPP-4HD】2HDMI+2DVI Video Processor
  • 【DPP-8HD】4HDMI+4DVI Video Processor
  • 【DPP-5HD4K】2HDMI+2DVI+1(2HDMI, 2DP optional) 4k 60 Video Processor
  • 【DPP-8HDS】2HDMI+2DVI+4SDI Video Processor
  • 【DPP-5HDI】2HDMI+2DVI+1IP Video Processor
Categories: ,
Related Products :U1-0LRV(2.8-12)A AI ProP1-4LRV(3.6)BU1-0LRV(8-32)A AI Pro
whatsapp us
Enquiry Now

Description

Technical Spec

Input Signal (DPP-4HD)

HDMI1.3*2Support EDID management,support the maximum resolution of 2048×1152@60Hz, downward compatible.
DVI*2Support EDID management,support the maximum resolution of 2048×1080@60Hz, downward compatible.

Input Signal (DPP-8HD）

HDMI1.3*2Support EDID management, support the maximum resolution of 2048×1152@60Hz, downward compatible.
DVI*2Support EDID management, support the maximum resolution of 2048×1080@60Hz, downward compatible.

Input Signal（DPP-5HD4K）

HDMI1.3*2Support EDID management, support the maximum resolution of 2048×1152@60Hz, downward compatible.
DVI*2Support EDID management, support the maximum resolution of 2048×1080@60Hz, downward compatible.
HDMI2.0*2+DP1.2*2Support EDID management, support the maximum resolution of 4096×2160@60Hz, downward compatible(choose one of the four)

Input Signal （DPP-8HDS）

HDMI1.3*2Support EDID management, support the maximum resolution of 2048×1152@60Hz, downward compatible.
DVI*2Support EDID management, support the maximum resolution of 2048×1080@60Hz, downward compatible.
3G-SDI*4Support ST-424 (3G), ST-292 (HD) standard video input, supports 3G-Level A/Level B (DS mode); (contains 4 3G-SDI loop output interfaces)

Input Signal （DPP-5HDI）

HDMI1.3*2Support EDID management, support the maximum resolution of 2048×1152@60Hz, downward compatible.
DVI*2Support EDID management, support the maximum resolution of 2048×1080@60Hz, downward compatible.
IP streaming*1RJ45 interface, support 1 4K60Hz or 16 1080p30Hz signal decoding.

Output signal

DVI*4The maximum resolution of single-port output supports 2048*1152@60Hz, which can be customized within 2.45 million pixels. Through splicing of 4 DVI ports, the maximum horizontal width can be 15360 pixels, and the maximum vertical width can be 14208 pixels.

Control interface

LAN*1Ethernet control network port,used for system upgrades or remote control through software
RS232*1Serial port for system upgrade or remote control through software
Input voltage100V-240V 50/60Hz
Maximum power65W
Operating temperature-5℃～45℃
Working humidity10%~85%, no condensation
Bare metal weight3.8kg (packing weight 5.5kg)
Equipment size490mm*363.2mm*55mm（L×W×H）
