Signage P03T(4)
No customer reviews yet

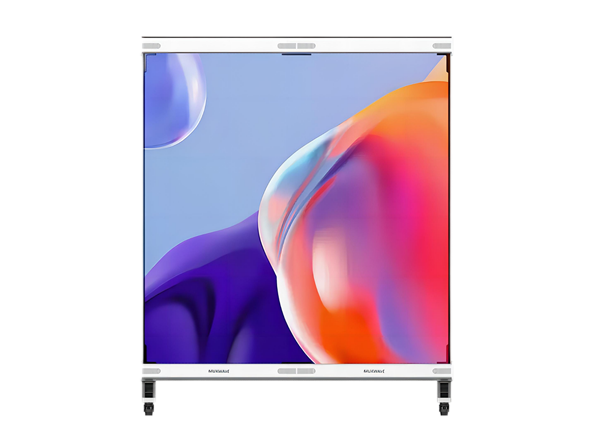

Holographic Invisible Signage Floor-Standing All-in-One Series
- Plug and play without assembly: Easy to deliver, detachable, removable
- Spatial floating image: 3D Holography, Spatial floating image
- HD display quality: Horizontal and vertical pixels equal spacing, Light/Driver Integrated, Picture Grayscale 16 bit
- High brightness and contrast: High brightness 5000cd/㎡, High contrast ratio 99:1
- Ultra-high transparency: No splicing structure, and the transparent display occupies more than 95% of the whole machine
- Multiple installation modes: A variety of installation methods such as lifting, vertical installation, lifting and vertical combination can be freely selected
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
Technical Spec
| Pixel Pitch (mm) (horizontal / vertical) | P3.91/P3.91 |
| Pixel Density (dot/m²) | 65536 |
| Transparency Rate | 80% |
| Display Dimension (mm)(w*h) | 2000×2000 |
| Profile Dimension (mm)(w*h) | 2021x2230x75; 2021x2452x500 |
| Resolution (dot) (w*h) | 512×512 |
| Brightness (cd/m²) | ≥3000 |
| Weight (Kg/set) | 60 |
| Encapsulation Type | Light Board &Driving Board Integrated |
| Scanning Mode | Static Driving (Single Pixel Single Control) |
| Lifespan | ≥100,000.00 hours |
| Pixel Configuration | 16bit |
| Maximum Power Consumption(w/m²) | 1000 |
| Average Power Consumption(w/m²) | 375 |
| Control System | Colorlight /Novastar |
| Input Voltage | AC100~240V 50/60 Hz |
| Working Voltage for Module | DC4.2V±0.2V |
| Working Temperature | Temperature -20°℃~50℃ |
| Working Humidity | Humidity:20%-85% (Without Condensation) |
| Storage Temperature | Temperature -20℃~60℃ |
| Storage Humidity | Humidity:10%-85% (Without Condensation) |
| Protection Degree | IP20 |
| Frame Material | Aviation Aluminum Alloy |
| Installation Environment | Indoor |
| Packing Way | Pearl Cotton+Wooden case/Airbox |
