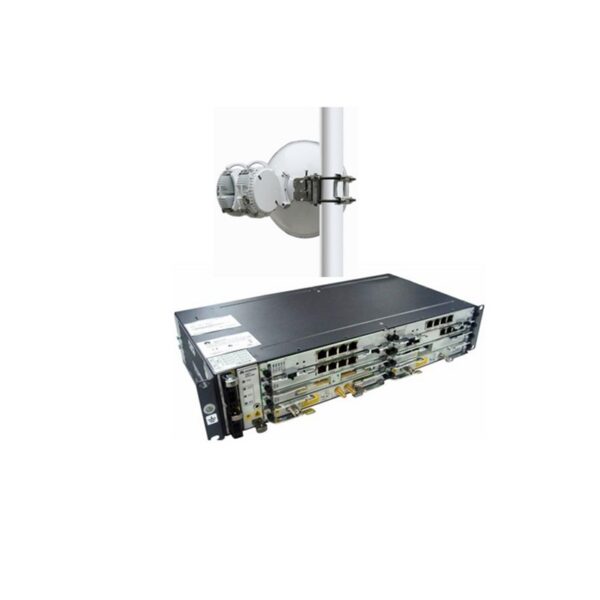

ODU(XMC-2-6G)

Huawei RTN 950 Specification

Deployment Scenario

Hub site and high-capacity access site

Frequency

6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz

Channel Spacing

3.5/ 7/14/28/40/50/56/112 MHz

Modulation Mode

QPSK Strong, QPSK, 16QAM Strong, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 512QAM Light, 1024QAM, 1024QAM Light, 2048QAM, 4096QAM

RF Direction

8 RF@2 U

Air-Interface Capacity

835-1058 Mbit/s per carrier (none-XPIC)

Native Ethernet Maximum Throughput

·Native Ethernet: 1058 (Mbit/s)

·L2+L3 frame header compression (IPv6): 2415 (Mbit/s)

Switching Capacity

10 Gbit/s

TDM Crossing

32 × 32 VC-4

Interface Type

E1, STM-1 (e/o), FE (e/o), GE (e/o), 10GE (o)

Configuration Mode

·N+0 (N ≤ 8)

·N × (1+0) (N ≤ 8)

·1+1

·N+1 (N ≤ 7)

·XPIC

Ethernet Function

·Ethernet ll, IEEE 802.3, and IEEE 802.1q/p service format adding or deleting, and exchange VLAN tags (IEEE 802.1q/p)

·ISIS, OSPF, BGP, RSVP, LDP

·Flow control (IEEE 802.3x)

·Link aggregation groups (IEEE 802.3ad LAG and L1 LAG)

·RMON (IETF RFC 2819)

Service Type

·Native Ethernet services: E-Line service and E-LAN service

·PW-carried Ethernet services: E-Line service, E-AGGR service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)

·L3VPN, L2VPN (VLL), CES, MCE (Native IP)

Key Feature

CES E1, IEEE 1588v2, USB startup, H-QOS, PLA/EPLA/EPLA+, AES-256 encryption, Anti-theft, 1+1,N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN

IDU Weight

·5.4 kg (1+0)

·6.2 kg (1+1)

IDU Dimensions

442 mm × 220 mm × 88 mm

Enviroment

·Temperature: IDU -5°C to +60°C; ODU -35°C to +55°C

·Humidity: IDU 5% to 95%; ODU 5% to 100%

Power

-38.4 V to -72 V

Typical Power Consumption（IDU+ODU)

·91 W (1+0)

·125 W (1+1)

Certificate

CE, RCM, FCC, IC, ETL, MCMC
