Description

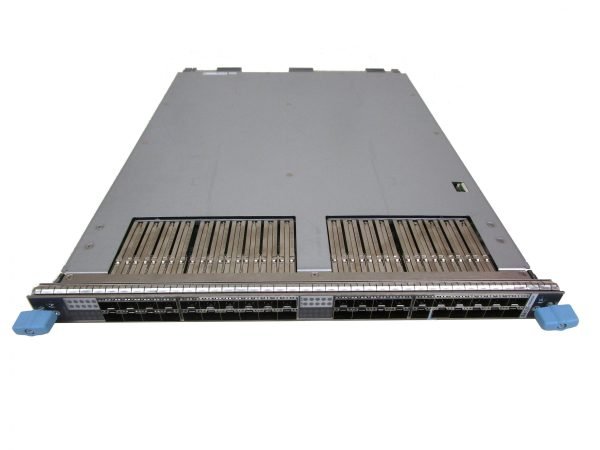

The Juniper MPC7E-10G is a high-capacity Modular Port Concentrator (MPC) designed for use with Juniper MX Series routers, delivering scalable, high-density 10 Gigabit Ethernet (10GbE) connectivity for service provider and enterprise edge networks. Powered by Juniper’s advanced Trio chipset, the MPC7E-10G enables high-performance packet processing, deep buffering, and rich service capabilities such as QoS, traffic management, and hierarchical scheduling.

This MPC supports up to 40× 10GbE SFP+ ports through compatible MIC (Modular Interface Card) configurations, offering flexible interface options for aggregation, peering, broadband network gateway (BNG), and data center interconnect deployments. The module provides up to 400 Gbps throughput, ensuring high-speed forwarding and scalability for demanding network environments.

The MPC7E-10G integrates tightly with Junos OS, enabling advanced features such as IP/MPLS, L2/L3 VPNs, EVPN-VXLAN, subscriber management, and telemetry for real-time network monitoring. Designed for high availability, it supports hot-swappable operation, redundancy, and seamless integration into MX chassis architectures, making it ideal for mission-critical deployments.

Key Features:
• Up to 40× 10GbE SFP+ ports via MIC configurations for high-density connectivity
• Up to 400 Gbps throughput with Juniper Trio chipset performance
• Advanced Junos OS features including IP/MPLS, EVPN-VXLAN, QoS, and subscriber services
• Hot-swappable MPC module for high availability and operational flexibility
• Scalable architecture for MX Series routers supporting service provider and enterprise edge deployments
