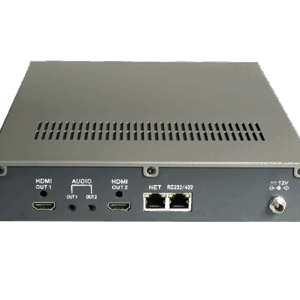

HWT-DEC802 - Image 1

HWT-DEC802

No customer reviews yet

Network Matrix with 2ch HDMI output

  • Support network media input
  • Support multiple resolution of output, it can manually set output resolution
  • Output supports maximum 3840×2160@30Hz
  • Can decode video of 8K, 4K, 1080P, 1080I, 720P, D1
  • H265/H264 compatible
  • Every HDMI ouput port support 2ch 4K or 8ch 1080P or 16ch 720P decoding and display
  • Support video-splitting output, up to 64 windows split on one monitor

GNTME · PRODUCT ENQUIRY

Get a quote for your project

Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.

Request a quoteWhatsApp this model

Buying several items? Include your model list in the enquiry.

Categories: ,

Description

Technical Spec

Output2ch HDMI output
Ethernet1, 100M/1000M self adaptive
Audio inputno physical audio input
Audio output2ch, by Ф3.5 audio interface
Alarm outputsupport network alarm input
USB2.0none
RS232/422/4851
Network video decodingH.265,H.264
Network video input4K, 1080P,1080I,720P,D1
HDMI ouput resolution1024×768P@60hz,1280×720P@60hz,1366×768P@60hz,1920×1080P@60hz,3840×2160@30hz
Video decode and displayevery hdmi can decode 2ch 4K or 8ch 1080P or 16ch 720P or 32ch D1
Monitor splicing2 monitor to splice and display one video
Splitmaximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define
OSDWindow, Channel,label, alarm, etc. information
Audio CodecG.711,G.726,ADPCM encode/decode
On/MuteSupports all channels and single channel set individually
Audio output2ch, by Ф3.5 audio interface
Power supplyAC100 to 230V
