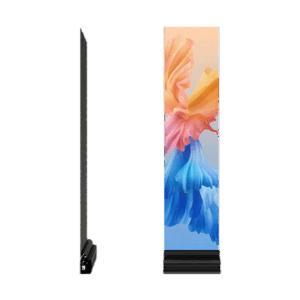

Display P03T-I - Image 1
Display P0307G-O
Display P06T-I

Display P03T-I

Holographic Invisible Display

  • Ultra-clear and ultra-thin, high-transparency and high-temperature resistant high end materials are used
  • The light board is perfectly designed to easily achieve a permeability of up to 80%
  • The overall mounting without a structural skeleton, the screen body can be spliced left and right, up and down, and can achieve a display height or width of 2.4-3 meters
  • Commercial window, glass curtain wall and other indoor and outdoor scenes
Categories: ,
Related Products :T500-AU2-4R(33x)A-Ex AIP4-5R(2.7-12)B AI
whatsapp us
Enquiry Now

Description

Technical Spec

Pixel Pitch (mm) (horizontal / vertical)P3.91/P3.91
Pixel Density (dot/m²)65536
Transparency Rate80%
Display Dimension (mm)(w*h)250×1000; 250×1171; 250×1468
Profile Dimension (mm)(w*h)250×1025; 250×1200; 250×1500
Resolution (dot) (w*h)64×256; 64×300; 64×376
Brightness (cd/m²)≥2000
Weight (Kg/set)1.6
Encapsulation TypeLight Board &Driving Board Integrated
Scanning ModeStatic Driving (Single Pixel Single Control)
Lifespan≥100,000.00 hours
Pixel Configuration16bit
Maximum Power Consumption(w/m²)1000
Average Power Consumption(w/m²)375
Control SystemColorlight /Novastar
Input VoltageAC100~240V 50/60 Hz
Working Voltage for ModuleDC 4.2V±0.2V
Working TemperatureTemperature -20°℃~50℃
Working HumidityHumidity:20%-85% (Without Condensation)
Storage TemperatureTemperature -20℃~60℃
Storage HumidityHumidity:10%-85% (Without Condensation)
Protection DegreeIP20
Frame Material/
Installation EnvironmentIndoor
Packing WayPearl Cotton+Wooden case/Airbox
