WS-X45-SUP6-E
Original price was: $21,995.00.$5,774.00Current price is: $5,774.00.

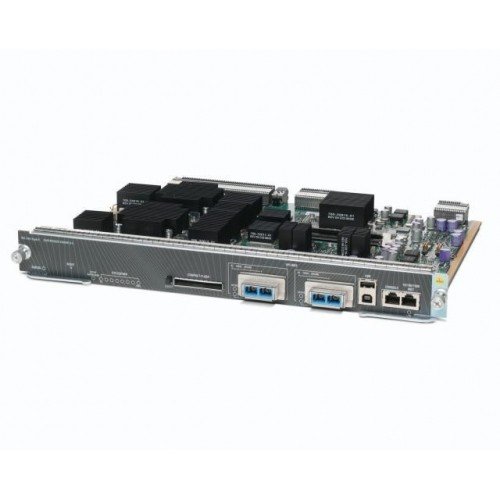

| Model: | WS-X45-SUP6-E Catalyst 4500 E-Series Supervisor Engine |
| Detail: | Catalyst 4500 E-Series Supervisor Engine 6-E, 2x10GE(X2) w/ Twin Gig |
Description
WS-X45-SUP6-E Specification |
|
|
Centralized switching capacity |
320 Gbps |
|
Per-slot switching capacity |
24 Gbps |
|
Throughput |
250 Mpps for IPv4 125 Mpps for IPv6 250 Mpps for L2 Bridging |
|
IPv4 Routing entries |
256,000 |
|
IPv6 Routing entries |
128,000 |
|
Multicast routes |
32,000 |
|
CPU |
1.3 GHz |
|
CPU queues |
64 |
|
Synchronous Dynamic RAM (SDRAM) |
512 MB upgradable to 1 GB |
|
Nonvolatile RAM (NVRAM) |
No through Boot flash (64 MB) |
|
Security and QoS hardware entries |
128,000 |
|
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries |
12,000 |
|
MAC addresses |
55,000 |
|
Active VLANs |
4096 |
|
Spanning Tree Protocol instances |
10,000 |
|
Switched virtual interfaces (SVIs) |
4096 |
|
Switched Port Analyzer (SPAN) |
Maximum of 8 sessions: ingress and or egress |
