Description
Searching for a Cisco WS-SVC-ASA-SM1-K9 Switch for productive systems administration at your working environment? Search no more! Our gntme.com site gives you the best cisco items that fulfill every one of your necessities.

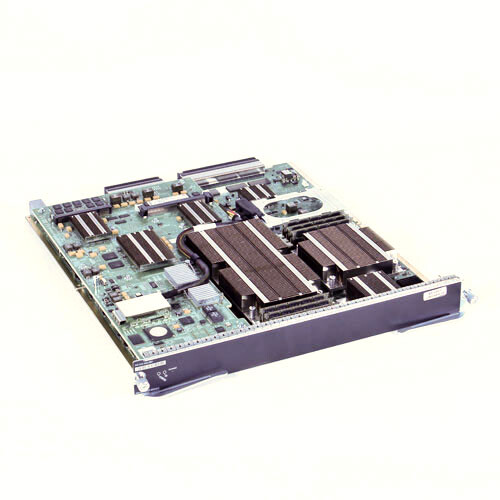

The Cisco Catalyst 6500 Series ASA Services Module conveys predominant innovation that consistently incorporates with Cisco Catalyst 6500 arrangement changes to give unparalleled security, unwavering quality, and execution. In view of the Cisco ASA stage, the most broadly sent firewall in the business, the ASA Services Module bolsters the most elevated throughput, multiple times the simultaneous associations, and twice as numerous associations each second as serious organization security modules, to meet the developing requirements of the present most unique associations – all in single cutting edge engineering.
The ASA Services Module makes it simple to add full firewall capacities to a current foundation by sliding a sharp edge into an unfilled opening in a current Catalyst 6500 Series switch – no extra rack space, cabling, power, or actual interface is required. It additionally works couple with different modules in the skeleton to convey vigorous security all through the whole undercarriage, successfully making each port a security port.
We are having Cisco Switches for sale and you can get these switches at an affordable rate. Take advantage of this sale and book your product now! Also, have a look at other Cisco Products, Cisco switches like C9200-48P-E, C9200-48T-E, etc. For any kind of queries regarding the product and it’s purchase, you can contact [email protected]
| Model info: | WS-SVC-ASA-SM1-K9 | |
| Product Description | Cisco Catalyst 6500 / 7600 Series ASA Services Module WS-SVC-ASA-SM1-K9 | |
| Devide Tyde | Cisco Catalyst 6500/7600 ASA Service moulde | |
| Maximum firewall throughput | 20 Gbps | |
| Multiprotocol firewall throughput | 16 Gbps | |
| Concurrent connections | 10,000,000 | |
| Connections per second | 300,000 | |
| Maximum 3DES/AES VPN throughput | 2 Gbps | |
| Maximum site-to-site and IPsec IKEv1 client VPN user sessions | 10,000 | |
| Maximum AnyConnect or clientless VPN user sessions | 10,000 | |
| Cisco Cloud Web Security users | 7500 | |
| Capacities | | |
| Security contexts | 5, 10, 20, 50, 100, 250 licenses (2 included) | |
| Cards per switch | 4 ASA Services Modules per Catalyst 6500 or Cisco 7600 Series chassis | |
| VLANs | 1,000 | |
| High availability | Active/Active, Active/Standby | |
| NAT translations | 10 million | |
| Transparent mode VLANs | 16 pairs | |
| Access control entries | 2 million | |
| Supervisor engines supported | ● 6500 Series Supervisor Engine 2T and Supervisor Engine 720 Systems | ● 7600 Series Supervisor Engine 2T, Supervisor Engine 720 and Route Switch Processor 720 Systems |
| System requirement | | |
| Catalyst 6500-E Switch | | |
ASA release version 8.5(1) and later
IOS version 12.2(33)SXJ2 and later | ● VS-S720-10G-3C
● VS-S720-10G-3CXL | ● WS-SUP720-3B
● WS-SUP720-3BXL |
ASA release version 8.5(1.7) and later
IOS version 15.0(1)SY1 and later | ● VS-S2T-10G
● VS-S2T-10G-XL | |
| Catalyst 7600 Series Router | | |
Cisco 7606-S, 7609-S
ASA release version 9.0(1) and later
IOS version 15.2(4)S2 and later | ● RSP720-3C-10GE
● RSP720-3CXL-10GE
● RSP720-3C-GE
| ● RSP720-3CXL-GE
● WS-SUP720-3B
● WS-SUP720-3BXL |
Cisco 7604, 7609-S, 7613-S
ASA release version 9.0(1) and later
IOS version 15.1(1)SY and later | ● VS-S2T-10G
● VS-S2T-10G-XL | |
| Module licenses | ● ASA 5500 5 Security Contexts License: ASA5500-SC-5
● ASA 5500 10 Security Contexts License: ASA5500-SC-10
● ASA 5500 20 Security Contexts License: ASA5500-SC-20
● ASA 5500 50 Security Contexts License: ASA5500-SC-50
| ● ASA 5500 100 Security Contexts License: ASA5500-SC-100
● ASA 5500 250 Security Contexts License: ASA5500-SC-250
● ASA 5500 GTP/GPRS Inspection License: ASA5500-GTP |
