WS-C3560X-24P-E Datasheet
No customer reviews yet
| Model: | WS-C3560X-24P-E |
| Detail: | 24-port Gigabit PoE+ Layer 3 switch with IP Services software, 435 W PoE power and optional uplink expansion. |
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
WS-C3560X-24P-E overview

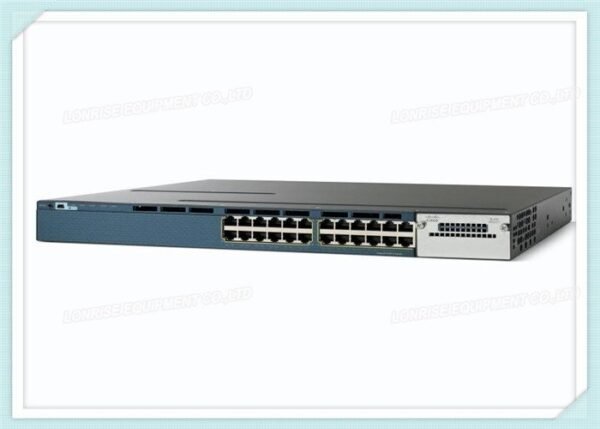

The WS-C3560X-24P-E is a rack-mountable Cisco Catalyst 3560-X managed Layer 3 switch with 24 Gigabit Ethernet PoE+ ports. It is intended for enterprise access and distribution deployments where IP Services software, powered Ethernet ports, routing functions and optional 1G/10G uplink connectivity are required.
Each RJ-45 access port supports 10/100/1000 Ethernet and PoE+, with a 435 W available PoE power figure for this model. The switch has a 160 Gbps switching capacity and supports an optional second power supply in a 1+1 redundancy arrangement. An expansion slot is provided for an uplink network module.
The IP Services feature set provides advanced Layer 3 switching features for IPv4 and IPv6. Listed routing capabilities include RIP-1, RIP-2, HSRP, VRRP, EIGRP, OSPF, BGP and PIM. Other listed network functions include VRF-Lite, IP SLA, NetFlow, policy-based routing, multicast support, QoS, VLANs, ACLs and DHCP snooping.
Specifications
| Specification | Details |
|---|---|
| Model | WS-C3560X-24P-E |
| Product type | Managed Layer 3 switch |
| Access ports | 24 x 10/100/1000 RJ-45 PoE+ ports |
| Switching capacity | 160 Gbps |
| PoE power | 435 W available PoE power |
| Software feature set | Cisco IOS IP Services |
| Uplink expansion | 1 expansion slot for an optional network module |
| Management interfaces | USB Type-A, mini-USB Type-B console, RJ-45 RS-232 console and out-of-band 10/100 Ethernet |
| Memory | 256 MB DRAM and 64 MB flash |
| Power supplies | 1 installed; 2 maximum; optional 1+1 power redundancy |
| Dimensions | 44.5 cm W x 46 cm D x 4.5 cm H |
| Weight | 7 kg |
| Mounting | 1U rack mountable |
Applications / who it is for
The WS-C3560X-24P-E suits IT managers, network administrators, system integrators and procurement teams specifying a 24-port PoE+ switch for UAE enterprise networks.
- Wired access deployments requiring Gigabit Ethernet and PoE+ at the access layer.
- Networks using IPv4 and IPv6 Layer 3 routing with the IP Services feature set.
- Deployments requiring VLANs, QoS, ACLs, multicast controls and routing protocols including OSPF, EIGRP or BGP.
- Installations that need an optional uplink module and provision for a second power supply.
- Rack-based network installations using a 1U switch with separate console and out-of-band management interfaces.
Frequently asked questions
How many Ethernet ports does the WS-C3560X-24P-E have?
The switch has 24 RJ-45 ports supporting 10/100/1000 Ethernet and PoE+.
What software feature set is included?
The WS-C3560X-24P-E includes Cisco IOS IP Services software, with advanced IPv4 and IPv6 Layer 3 switching features.
Can this switch use redundant power?
Yes. One power supply is installed, two are supported, and the optional power redundancy scheme is 1+1.
Frequently asked questions
How many Ethernet ports does the WS-C3560X-24P-E have?
The switch has 24 RJ-45 ports supporting 10/100/1000 Ethernet and PoE+.
What software feature set is included?
The WS-C3560X-24P-E includes Cisco IOS IP Services software, with advanced IPv4 and IPv6 Layer 3 switching features.
Can this switch use redundant power?
Yes. One power supply is installed, two are supported, and the optional power redundancy scheme is 1+1.
Official manufacturer information: Cisco product page
