Description

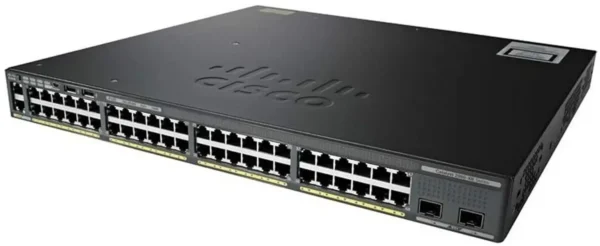

The Cisco Catalyst WS-C2960X-48LPS-L is a 48-port PoE+ switch built for enterprise access layer networks. It belongs to the Cisco Catalyst 2960-X Series, which is widely known for delivering reliable performance, advanced security, and easy network management for modern business environments.
The switch comes with 48 x 10/100/1000 Mbps PoE+ Ethernet ports and 4x 1G SFP uplink ports. As a result, it provides fast and reliable wired connectivity while also powering devices such as IP phones, wireless access points, and IP cameras directly through the network cable. Furthermore, it supports up to 370W of total PoE power budget, ensuring enough power for all connected devices.
The Cisco WS-C2960X-48LPS-L runs on Cisco IOS LAN Base software. This software delivers key networking features including advanced security, QoS, and network monitoring. In addition, it supports Cisco FlexStack-Plus technology, allowing up to eight switches to stack together and work as one unified system, making it easy to scale your network as your business grows.
Moreover, the switch supports advanced security features including 802.1X authentication, port security, and ACLs, keeping your access layer network safe from unauthorized access at all times. Additionally, it supports IGMP snooping and multicast routing, ensuring efficient traffic management across your network.
With its energy-efficient design and compact form factor, the Cisco WS-C2960X-48LPS-L fits perfectly in office and enterprise environments that need reliable PoE switching. Overall, it is an ideal choice for organizations looking for a secure, scalable, and easy-to-manage PoE switch.
Key Features:
- First and foremost, it includes 48 x 10/100/1000 Mbps PoE+ Ethernet ports for reliable wired connectivity and device power delivery.
- In addition, it offers 4x 1G SFP uplink ports for high-speed connections to core network devices.
- Furthermore, it supports a total PoE power budget of 370W, providing enough power for all connected PoE devices.
- Moreover, it supports Cisco FlexStack-Plus technology, allowing up to eight switches to stack and work as one unified system.
- It also supports 802.1X authentication, port security, and ACLs to protect your network from unauthorized access.
- Additionally, it runs Cisco IOS LAN Base software with advanced security, QoS, and network monitoring features.
- Finally, its energy-efficient design helps reduce power consumption and lower operational costs.
WS-C2960X-48LPS-L Specifications |
| Enclosure type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
Miscellaneous |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.9 lb (5.8 Kg) |
| Package Weight | 23.48 lb (10.65 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 276,870 |
| Compliant Standards | IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.1ab (LLDP), 802.1ax, 802.3ad, 802.3af, 802.3at, 802.3ah, 802.3az, 802.3x, 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, RMON I & II, SNMP v1/v2c/v3 |
System software / license |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | ●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security | ●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
| Management and Troubleshooting | ●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
Environmental Ranges |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to 40ºC) |
| Short-term exception at sea level* | 23ºF to 131ºF (-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF (-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF (-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF (-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet (Up to 3000 Meters) |
| Storage altitude | Up to 13,000 (Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
