Description
What is the WS-C2960X-48FPS-L?

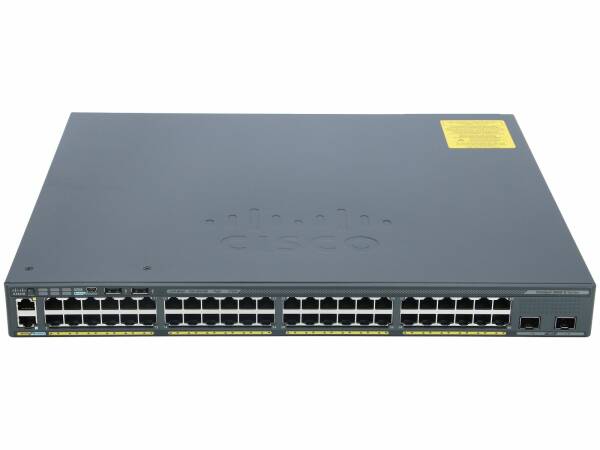

The WS-C2960X-48FPS-L is a Cisco Catalyst 2960-X Series 48-port PoE+ Gigabit Ethernet switch that Cisco designed for enterprise campus and branch office deployments. Specifically, this WS-C2960X-48FPS-L delivers a 740W PoE budget to power IP phones, wireless access points, and surveillance cameras. Furthermore, the WS-C2960X-48FPS-L combines 216 Gbps switching capacity with FlexStack-Plus technology, so network teams can manage scalable and growing business environments with ease.
WS-C2960X-48FPS-L Key Features
- To begin with, the WS-C2960X-48FPS-L carries 48 x 10/100/1000 PoE+ ports with a 740W total PoE budget
- In addition, the WS-C2960X-48FPS-L offers 4 x 1G SFP uplink ports for flexible connectivity
- Moreover, the WS-C2960X-48FPS-L supports FlexStack-Plus stacking across up to 8 units
- As a result, the WS-C2960X-48FPS-L achieves 216 Gbps switching capacity and 107.1 Mpps forwarding performance
- What is more, the Cisco loads this switch with enhanced security and QoS capabilities in its enterprise software
- Additionally, the WS-C2960X-48FPS-L accommodates hot-swappable power supplies and optional RPS redundancy
- Finally, the WS-C2960X-48FPS-L runs an energy-efficient design that fully supports Cisco EnergyWise
Typical Use Cases
- To begin with, network teams deploy the WS-C2960X-48FPS-L at the enterprise campus access layer
- Similarly, branch offices choose the WS-C2960X-48FPS-L because it handles both wired and wireless connectivity efficiently
- In addition, the WS-C2960X-48FPS-L fits stacked network environments where teams need simplified management
- Consequently, organizations also rely on the WS-C2960X-48FPS-L to support IP telephony, wireless APs, and IP surveillance systems together
WS-C2960X-48FPS-L Specification
WS-C2960X-48FPS-L Specifications: For technical data, the Cisco WS-C2960X-48FPS-L model brings robust options for enterprises. For clarity, Cisco WS-C2960X-48FPS-L continues to be a preferred switch for businesses requiring advanced features. |
| Enclosure type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power Cisco WS-C2960X-48FPS-L | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators Cisco WS-C2960X-48FPS-L | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
| Miscellaneous |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.9 lb (5.8 Kg) |
| Package Weight | 23.48 lb (10.65 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours Cisco WS-C2960X-48FPS-L | 323,610 |
FAQ
Q: What is the PoE budget of the WS-C2960X-48FPS-L?
A: In particular, the WS-C2960X-48FPS-L delivers a 740W PoE budget across all 48 PoE+ ports. Therefore, network administrators choose this switch to power IP phones, wireless access points, and surveillance cameras simultaneously without any additional power equipment.
Q: How many switches can be stacked with the WS-C2960X-48FPS-L?
A: Furthermore, network teams can stack up to 8 WS-C2960X-48FPS-L units using Cisco FlexStack-Plus technology. As a result, this stacked configuration pushes up to 80 Gbps of stack bandwidth, so teams achieve simplified and centralized network management across all units.
Q: Is the WS-C2960X-48FPS-L compatible with Cisco DNA Center?
A: Moreover, the WS-C2960X-48FPS-L belongs to the Cisco Catalyst 2960-X Series, which supports Cisco network management platforms. Specifically, network engineers can integrate this WS-C2960X-48FPS-L into traditional Cisco management environments quickly and effectively.
Q: What software does the WS-C2960X-48FPS-L run?
A: As a result, the WS-C2960X-48FPS-L runs Cisco IOS LAN Base software natively. In particular, this software equips the WS-C2960X-48FPS-L with enterprise Layer 2 features such as VLAN support, QoS, ACL security, and IGMP snooping for complete network control.
