Description

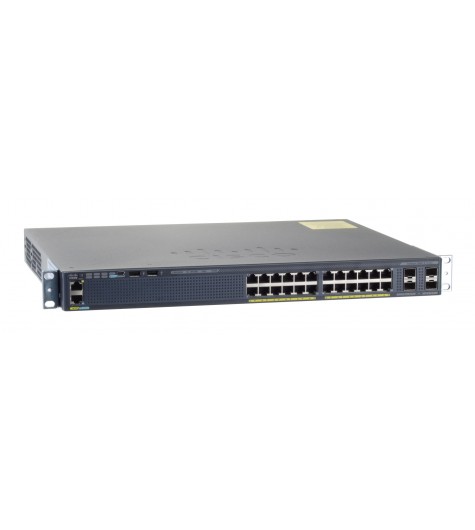

The Cisco WS-C2960X-24PS-L is a 24-port Gigabit PoE+ managed access layer switch from the Cisco Catalyst 2960-X Series. Furthermore, it delivers enterprise-grade switching performance with a 370W PoE budget. As a result, it is well-suited for powering IP phones, wireless access points, and IP surveillance cameras.
The Cisco WS-C2960X-24PS-L PoE switch features 24 x 10/100/1000 Mbps access ports and 4 x 1G SFP uplink ports. Furthermore, it supports a switching bandwidth of 216Gbps and a forwarding performance of 107.1Mpps, ensuring efficient handling of high-traffic enterprise environments.
Additionally, this Cisco Catalyst 2960-X switch supports stacking of up to 8 units with 80G stack bandwidth. As a result, network administrators can scale access layer capacity without adding new management points.
Running Cisco IOS LAN Base software, the WS-C2960X-24PS-L supports advanced Layer 2 features including VLANs, QoS, IGMP snooping, 802.1x authentication, and robust security protocols, making it a reliable choice for enterprise access layer deployments.
Cisco WS-C2960X-24PS-L PoE switch Key Features
- To begin with, 24 x 10/100/1000 Mbps PoE+ access ports with 370W PoE budget
- In addition, 4 x 1G SFP uplink ports
- Furthermore, switching bandwidth: 216 Gbps | Forwarding: 107.1 Mpps
- Additionally, stackable up to 8 units with 80G stack bandwidth
- Moreover, Cisco IOS LAN Base software
- As a result, supports 802.1x, RADIUS, TACACS+, SNMPv3, and SSH
- Finally, rack-mountable 1U form factor
Cisco WS-C2960X-24PS-L PoE switch Specification
Specifications |
| Enclosure type | Rack-mountable – 1U |
| Ports | 48 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators WS-C2960X-24PS-L | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
Miscellaneous |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.8 lb (5.8 Kg) |
| Package Weight | 23.48 lb (10.65 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 324,280 |
| Compliant Standards WS-C2960X-24PS-L | - IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.1ab (LLDP), 802.1ax
- IEEE 802.3ad, 802.3af, 802.3at, 802.3ah, 802.3x, 802.3az
- IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3z (1000BASE-X)
- RMON I and II
- SNMP v1, v2c, and v3
|
System software / license |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features WS-C2960X-24PS-L | ●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security | ●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
| Management and Troubleshooting WS-C2960X-24PS-L | ●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
Environmental Ranges |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to 40ºC) |
| Short-term exception at sea level* | 23ºF to 131ºF (-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* WS-C2960X-24PS-L | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF (-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF (-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF (-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet (Up to 3000 Meters) |
| Storage altitude WS-C2960X-24PS-L | Up to 13,000 (Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
Frequently Asked Questions (FAQ)
Q. How many PoE ports does the Cisco WS-C2960X-24PS-L PoE switch have?
A. The WS-C2960X-24PS-L has 24 PoE+ ports with a total PoE budget of 370W. As a result, it is suitable for powering IP phones, access points, and cameras.
Q. Can the WS-C2960X-24PS-L be stacked with other switches?
A. Yes. Indeed, it supports stacking of up to 8 units using optional stacking cables, with a stack bandwidth of 80G.
Q. What software does the Cisco WS-C2960X-24PS-L PoE switch run?
A. It runs Cisco IOS LAN Base. Furthermore, it supports advanced Layer 2 features, QoS, VLANs, and enterprise security protocols.
Q. What uplink ports does the WS-C2960X-24PS-L provide?
A. It provides 4 x 1G SFP uplink ports. As a result, it enables reliable connectivity to aggregation or core switches.
