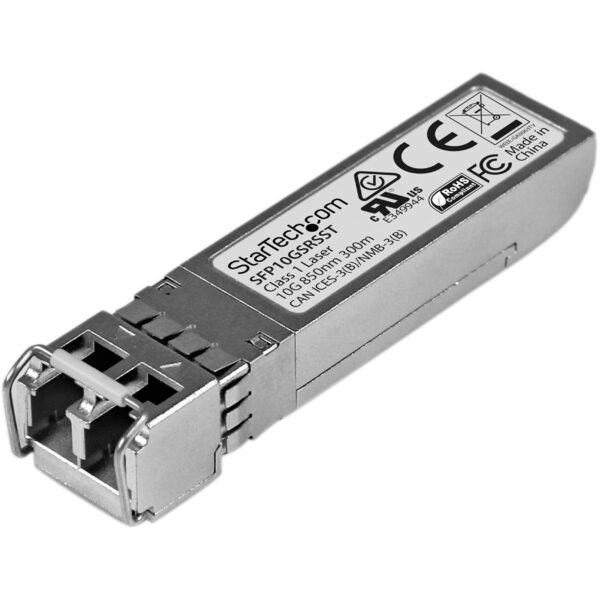

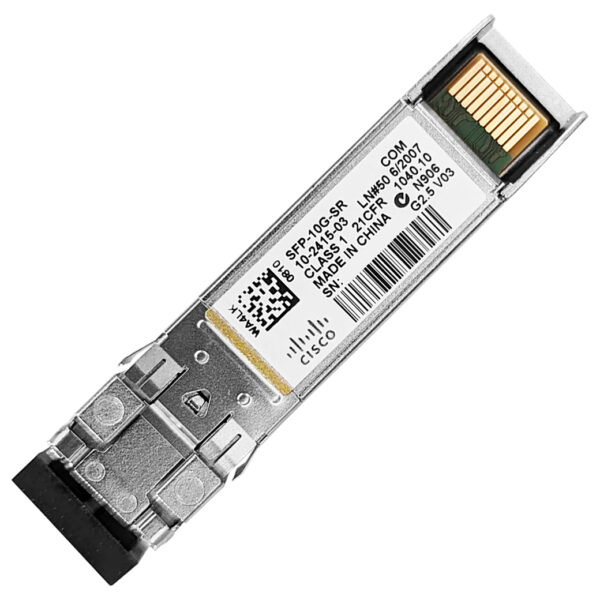

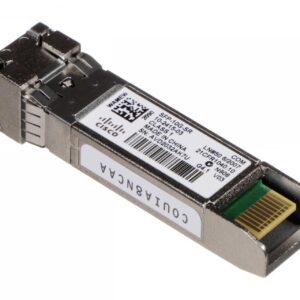

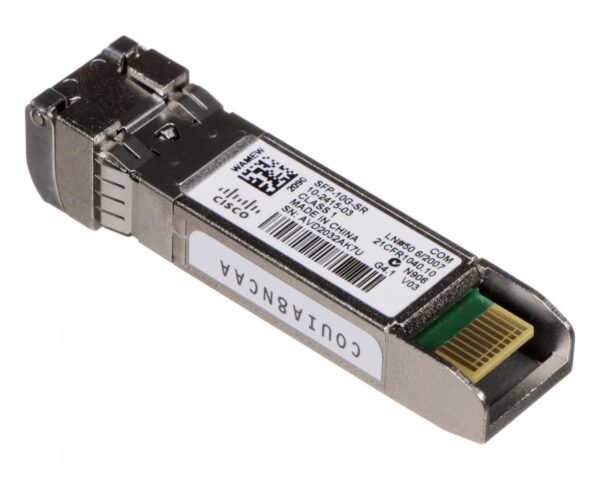

SFP-10G-SR
Original price was: $1,032.00.$152.00Current price is: $152.00.
| Model: | SFP-10G-SR 10GBASE-SR SFP Module |
| Detail: | 10GBASE-SR SFP Module |
Datasheet: SFP-10G-SR Datasheet
Enquire Now
- Description
Description
[vc_row][vc_column][vc_column_text]
Sfp-10g-sr Overview
On standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber, the Sfp-10g-sr module supports a connection length of 26m (MMF). Up to 300m connection lengths are feasible using 2000MHz*km MMF (OM3). With the Sfp-10g-sr, up to 400m connection lengths are achievable at 4700MHz*km MMF (OM4).
Similar Items
About Gear Net Technologies
Gear Net Technologies provide all type of Enterprise-Class SFP+ Modules that are guaranteed to be 100% compatible with the equivalent Cisco transceiver. Buy the Sfp-10g-sr module from our website at the lowest price along with fast delivery. We guarantee the quality of our products and proudly provide a limited lifetime guarantee.
Please contact us at sales@gntme.com if you like to order a big quantity of goods. All orders placed within the United Arab Emirates (UAE) are eligible for free shipping. You may reach us at +971 4 2409 998 or +971585811786 on Whatsapp. Customer assistance is available 24 hours a day
SFP-10G-SR Specifications |
|
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (Microns) | 62.5
62.5 50 50 50 |
| Modal Bandwidth (MHz*km) |
160 (FDDI) 200 (OM1) 400 500 (OM2) 2000 (OM3) |
| Cable Distance |
26m 33m 66m 82m 300m |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Bail Latch Color | Beige |
| Power Consumption (W) | 1 |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Transmit Power (dBm) | Maximum: -1.2
Minimum: -7.3 |
| Receive Power (dBm) | Maximum: -1.0
Minimum: -9.9 |
