Product Details

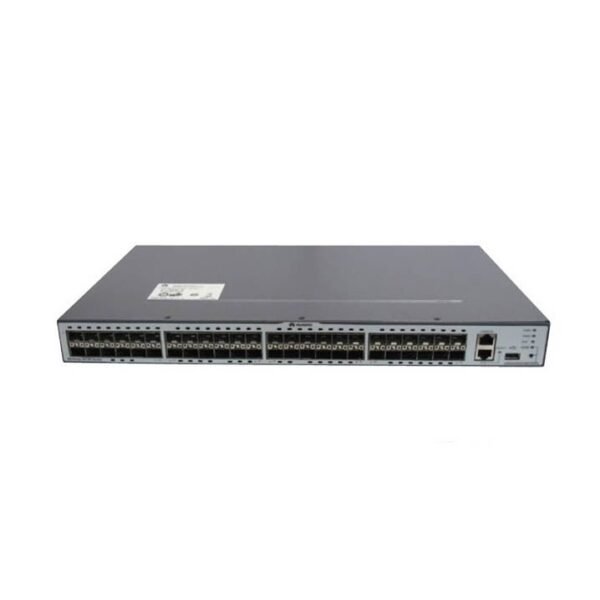

S6700-48-EI
< tbody >
| Model: | S6700-48-EI Huawei S6700 Series Switch |
| Detail: | S6700-48-EI(48 10 Gig SFP+,without power module) |
Description
S6700-48-EI Specifications |
|
| Port | 48* GE SFP/10 GE SFP+ ports |
| MAC address table | 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ |
| IPv4 routing | Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy |
| IPv6 routing | Static route RIPng OSPFv3 BGP4+ |
| IPv6 features | Neighbor Discovery (ND) PMTU IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
| multicast | Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP |
| QoS/ACL | Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Reliability | STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM E-Trunk |
| MPLS features | MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS |
| Security | DoS attack defense, ARP attack defense, and ICMP attack defense 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication and TACACS authentication SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist |
| Management and maintenance | iStack (using service ports as stack ports) MAC Forced Forwarding (MFF) Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) SNMP v1/v2/v3 RMON Web NMS System logs and alarms of different levels GVRP MUX VLAN sFlow |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) | |
| Supports VCMP (Similar to VTP) | |
| Operating environment | Operating temperature: 0OC–45OC Relative humidity: 5%–95% (non-condensing) |
| Input voltage | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Power consumption | 240W |
