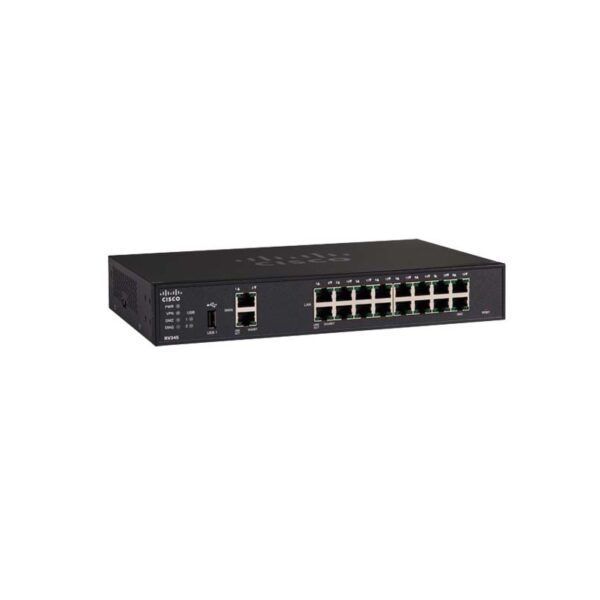

RV345-K9-CN - Cisco RV300 VPN Routers

RV345-K9-CN

< tbody >

Model: RV345-K9-CN – Cisco RV300 VPN Routers
Detail: Cisco RV345 Dual WAN Gigabit VPN Router
Chat With GNTME LLC

Share this product

Description

RV345-K9-CN Specification

WAN ports 2 RJ-45 Gigabit Ethernet
LAN ports



16 RJ-45 Gigabit Ethernet

(LAN 1, 2, 3, 4 and LAN 9, 10, 11, 12 are PoE 802.3at, max 30W per port up to 120W total)

Console/serial 1 RJ-45 port for future use. Port is disabled
USB



2 for external 3G/4G modem or flash drive (USB-3, USB-2)
Firewall



Stateful packet inspection, up to 980 Mbps throughput for TCP and UDP
Quality of Service (QoS)





Traffic Classes, WAN Queuing, WAN Policing, WAN Bandwidth Management, Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device
Web Security



Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified
Application Visibility





Application identification: Assign policies to Internet applications

500 unique Apps

Client Identification





Identifies and categorizes clients dynamically. Assigns policies based on end device category and operating system.
Intrusion Prevention System





IDS/IPS inspects network packets, logs and/or blocks a wide range of network attacks. It delivers increased network availability, faster remediation, and comprehensive threat protection.

HTTP/FTP/SMTP/POP3/IMAP

Antivirus





Protection from viruses, trojans, spyware, and identity theft by inspecting traffic going through the router.

HTTP/FTP/SMTP/POP3/IMAP

Cisco Umbrella





First line of defense for threats on the Internet. Prevention for user and malware-initiated connections. Protection against Malware, C2 callbacks, and phishing. Proxy inspection for risky domains.
IPSec



IKEv1 and IKEv2

50 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput

IPsec remote access



Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN EasyVPN)
Layer 2 Tunneling Protocol (L2TP) over IPsec Yes
Generic Routing Encapsulation (GRE) over IPsec Yes
Cisco SSL VPN (Cisco AnyConnect)





Maximum 50 SSL VPN tunnels and up to 33Mbps throughput. Also requires Cisco AnyConnect end user licenses to use on the end device. Ideal for mobile devices.
Point-to-Point Tunneling Protocol (PPTP) 25 connections, up to 100 Mbps throughput
Teleworker mode (Cisco IPsec VPN)



Router acts as a client to connect to central VPN gateway in teleworker mode
VPN pass-through IPSec, PPTP, L2TP
Management protocols





Web browser (HTTP/HTTPS)

Simple Network Management Protocol (SNMP) v1, v2c, and v3

Representational State Transfer (REST) API

NETCONF

Management Platform FindIT Network Manager
Firmware upgrade options





Via local PC, USB stick, or from Cisco.com via web browser.

Unattended automatic firmware upgrade.

LAN

VLAN Up to 32 VLANs
Port Security Yes, 802.1X
Link aggregation Yes (static, no LACP)
IPv6 Dual stack, 6rd, 6in4, Dual stack lite
WAN



DHCP client, static IP, PPPoE, PPPTP, L2TP, transparent bridge
Routing



Static routing, IGMP proxy, Inter-VLAN routing, Routing Information Protocol RIPv1,v2, RIPng
Network Address Translation (NAT)



Port Forwarding

Port Address Translation (PAT)

One-to-one NAT

VPN NAT traversal

Session Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG

NAT max sessions >40000
NAT max connections per second 3000
DynDNS



ChangeIP.com, DynDNS.com, No-IP.com, dnsomatic
IPv6 transition Dual Stack
Hardware DMZ



Yes (when enabled, one LAN port will be DMZ port)
DMZ host Yes

System

CPU





ARM-based architecture, dual core, hardware flow engine

900 Mhz

RAM 1 GB DDR3
Flash 256 MB

Product Dimensions

RV340 excluding antennas 280 x 44 x 170 mm (11 x 1.75 x 6.75 in)
MTBF 50000 hours
Rack mountable Yes
Included accessories



Power supply, power cord, Ethernet cable, rack mount kit
Fan No
Included accessories Power supply, power cord, ethernet cable
Power Supply AC 100-240V/1A DC 12V/2.5A DC
Certification



FCC Class A CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
Operating temperature 0° to 40 °C (32° to 104 °F)
Storage temperature 0° to 70 °C (32° to 158 °F)
Operating humidity 10% to 85% noncondensing
Storage humidity 5% to 90% noncondensing
