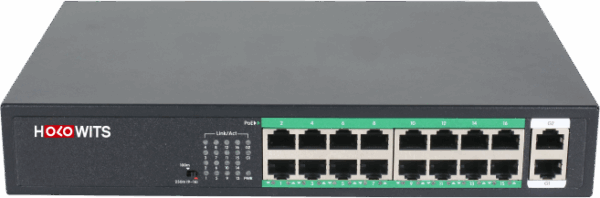

NSW E518A
No customer reviews yet
18-Port Gigabit Uplink PoE Switch
- Provides 16 PoE ports and 2 Gigabit uplink RJ45 ports for flexible networking
- Plug and play design for simple, hassle-free setup
- Supports full-duplex and half-duplex networking for various applications
- Ideal for security monitoring, teleconferencing, and wireless coverage
- Supports long-distance transmission with port 9-16 for up to 250 meters
- Certified for compliance with industry standards
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
Technical Spec
| Fixed Port | 16*10/100Base-TX PoE ports (Data/Power), 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-16 support 10/100Base-TX, Port 17-18 support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
| Functional Switch | After opening, port 9-16 supports 10M/250 meters long-distance transmission |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meters), 100BASE-TX: Cat5 or later UTP(≤100 meters), 1000BASE-T: Cat5e or later UTP(≤100 meters) |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 14.8Gbps (Non-blocking) |
| Forwarding Rate@64byte | 5.36Mpps |
| MAC | 4K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2K |
| LED Indicator | Power: PWR (green), Network: Link (yellow), PoE: PoE (green) |
| MTBF | ≥100000h |
| PoE Port | Port 1 to 16 IEEE802.3af/at @PoE |
| Power Supply Pin | Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-), 2-pairs power supply |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total Power / Input | 250W (AC100-240V) |
| Power Consumption | Standby <15W, Full load <250W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Operating Temperature / Humidity | -20~+55°C; 5%~90% RH Non-condensing |
| Storage Temperature / Humidity | -40~+75°C; 5%~95% RH Non-condensing |
| Dimensions (L*W*H) | 270*181*44.5mm |
| Net / Gross Weight | <1.55kg / <2.05kg |
| Installation | Desktop, wall-mounted |
| Lightning Protection / Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year |
