Product Details
MA5878
< tbody >

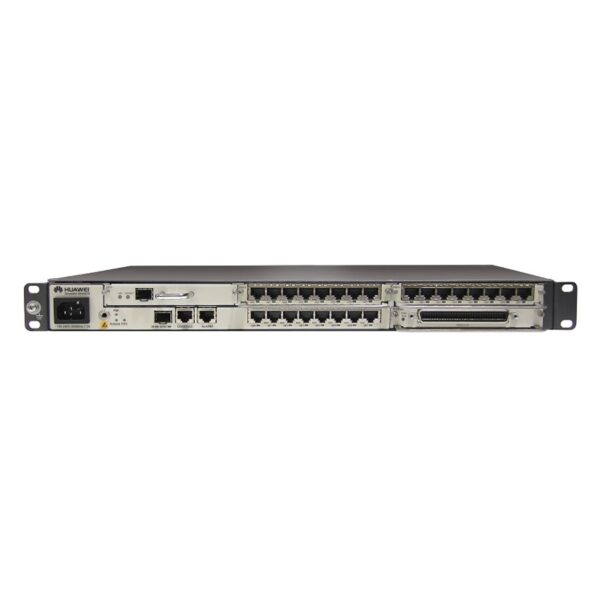

| Model: | MA5878 – Huawei SmartAX MA58xx Series |
| Detail: | Huawei SmartAX MA5878 |
Description
MA5878 Specification |
|
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 245 mm |
| Operating Environment | –40°C to 65°C 5% RH to 95% RH |
| Power | DC: -48V to -60V AC: 90V to 264V |
| Network-side Ports | One SFP optical port 10G PON or PON (auto-negotiation) Houses XS1C and supports 10G GPON (symmetric) |
| User-side Ports | Fixed configurations: 8 x GE (electrical) 3 service slots: 8 x GE (electrical) 16 x POTS 8 x POTS |
| Surge Protection | DC-powered port: Differential mode 2 kV; common mode 4 kV LAN port: 4 kV POTS port: 4 kV |
