Juniper Networks MX204-HWBASE-AC-FS Universal Routing Platform – 400Gbps, 8x 10GbE + 4x 100GbE, Dual AC PSU, 1U (Hardware + Junos OS, Optional 1–3 Year Support)
The Juniper MX204-HWBASE-AC-FS is a 1U MX Series router delivering 400Gbps throughput with 10GbE and 100GbE ports, dual AC power supplies, and Junos OS.
- Description
Description

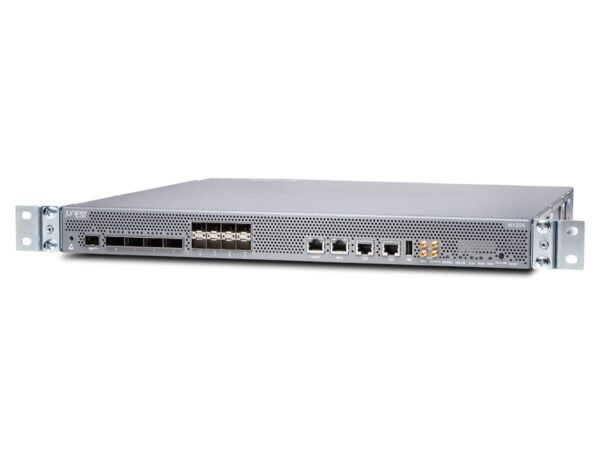

The Juniper Networks MX204-HWBASE-AC-FS is a compact, high-performance Universal Routing Platform designed for service provider edge, enterprise WAN, and data center interconnect (DCI) deployments. Built as part of the MX Series, this 1U fixed router delivers exceptional scalability, efficiency, and performance in space-constrained environments.
This model includes base hardware with standard Junos OS, providing a foundation for advanced routing and switching capabilities. Additional feature licenses can be added based on deployment requirements.
The MX204 platform delivers up to 400 Gbps of system throughput, making it ideal for high-density aggregation, metro Ethernet, and cloud edge applications. It features 8x 10GbE SFP+ ports and 4x 100GbE QSFP28 ports, supporting flexible connectivity and scalable bandwidth growth.
Designed for high availability, the MX204-HWBASE-AC-FS includes dual AC power supplies in a 1+1 redundant configuration, along with hot-swappable fan modules for uninterrupted operation. The system uses front-to-back airflow (AFO), making it suitable for standard data center hot aisle/cold aisle deployments.
Powered by an Intel-based processor with 32 GB RAM and SSD storage, the platform supports advanced features such as MPLS, EVPN-VXLAN, Segment Routing, and IP routing protocols. It also includes precise timing interfaces (PTP, BITS, SyncE) for mobile backhaul and 5G applications.
With its compact footprint, high throughput, and flexible licensing model, the MX204-HWBASE-AC-FS is an ideal solution for operators looking to optimize space, power, and cost while delivering carrier-grade performance.
Optional Juniper Care support services (1-Year, 3-Year, or 5-Year) provide 24/7 technical assistance, software updates, and hardware replacement for mission-critical deployments.
Key Features:
- Up to 400 Gbps throughput in a compact 1U form factor
- 8x 10GbE SFP+ + 4x 100GbE QSFP28 ports
- Dual AC power supplies with 1+1 redundancy
- Front-to-back airflow (AFO) for data center environments
- Supports MPLS, EVPN-VXLAN, Segment Routing, and advanced IP routing
