Description

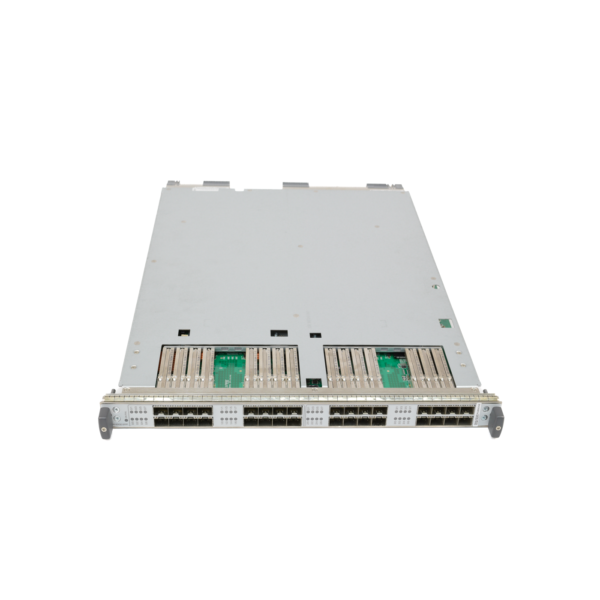

The Juniper Networks MPC4E-3D-32XGE-SFPP is a high-density Modular Port Concentrator (MPC) engineered for Juniper MX Series 3D Universal Edge Routers. It delivers scalable 10 Gigabit Ethernet connectivity for service provider, enterprise, and data center edge environments.
This line card provides 32x 10GbE SFP+ ports in a fixed configuration, enabling high-density deployments while maintaining flexibility through pluggable optics (sold separately). It supports a line-rate throughput of up to 260 Gbps, ensuring consistent high-speed forwarding for bandwidth-intensive applications.
Built on Juniper’s 3D architecture, the MPC4E integrates packet forwarding engines directly on the card, enabling efficient processing of Layer 2, Layer 3, and MPLS traffic. It supports advanced services such as hierarchical QoS (H-QoS), IPv4/IPv6 routing, and carrier Ethernet features, making it ideal for broadband edge, mobile backhaul, and enterprise WAN deployments.
The module supports WAN-PHY mode on a per-port basis. It also supports jumbo frames up to 9,500 bytes (depending on Junos OS version). Therefore, it ensures compatibility with diverse transport environments.
Compatible with a wide range of MX platforms—including MX240, MX480, MX960, MX2010, and MX2020—the MPC4E-3D-32XGE-SFPP allows service providers to scale capacity efficiently with a “pay-as-you-grow” approach.
Designed for high availability, the module is hot-swappable, enabling installation or replacement without service disruption. It operates with Junos OS (Release 12.3R2 and later). As a result, it provides access to automation, telemetry, and advanced network services.
The “-SFPP” designation indicates SFP+ interfaces. This allows flexible deployment with SR, LR, ER, or DAC/AOC optics. The selection depends on distance and use case.
Optional Juniper Care support services (1-Year, 3-Year, or 5-Year) provide 24/7 technical assistance, software updates, and hardware replacement for mission-critical operations.
Key Features:
- 32x 10GbE SFP+ ports for high-density connectivity
- Up to 260 Gbps throughput per MPC
- Supports Layer 2, Layer 3, MPLS, and advanced QoS features
- WAN-PHY support and jumbo frames up to 9,500 bytes
- Compatible with MX240, MX480, MX960, MX2010, and MX2020 routers
