Description

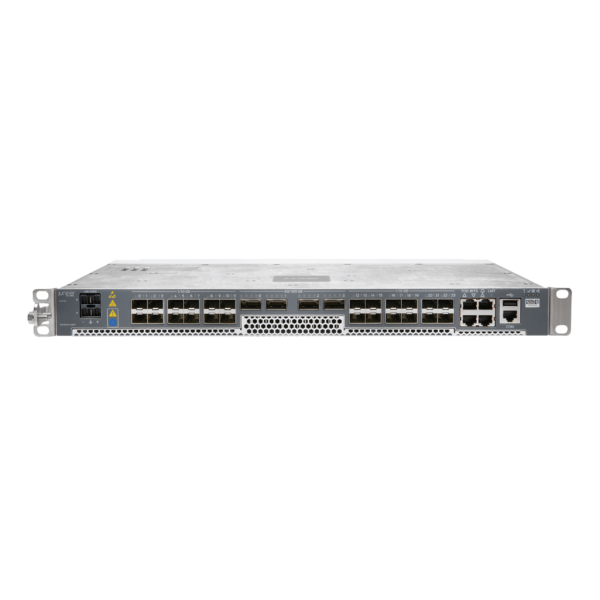

The Juniper Networks ACX710 Universal Metro Router is a compact, high-performance platform purpose-built for modern metro, enterprise edge, and 5G network deployments. As part of the Juniper ACX7000 family, the ACX710 delivers advanced routing capabilities, automation, and service scalability in a space-efficient 1U form factor.
Designed to support evolving network demands, the ACX710 provides a flexible interface configuration that includes 10x 1/10GbE SFP+ ports and 4x 100GbE QSFP28 uplinks. This combination enables seamless aggregation, high-speed backhaul, and scalable connectivity for cloud, IoT, and mobile edge applications.
Running on Junos OS Evolved, the ACX710 offers deep programmability and integration with Juniper Paragon Automation for end-to-end network orchestration, visibility, and service assurance. It supports advanced networking technologies such as Segment Routing (SR), SRv6, MPLS, and EVPN-VXLAN, making it ideal for building highly scalable and efficient IP/MPLS and overlay networks.
The platform is engineered for reliability and deployment flexibility, featuring industrial-grade components, efficient thermal management, and redundant power supply options (model-dependent). Its hardened design allows operation in extended temperature environments, making it suitable for both indoor and outdoor installations.
Security is built into the platform with Zero Trust architecture support and encrypted control plane communication, helping protect critical infrastructure. The ACX710 also supports precision timing and synchronization features required for 4G/5G mobile networks, including IEEE 1588v2 and SyncE.
Optional Juniper Care support services (1-Year, 3-Year, or 5-Year) provide 24/7 technical assistance, software updates, and hardware replacement, ensuring continuous operation and peace of mind for mission-critical deployments.
Key Features:
- Compact 1U universal metro router for edge and aggregation deployments
- 10x SFP+ (1/10GbE) + 4x QSFP28 (100GbE) high-speed interfaces
- Supports MPLS, Segment Routing (SR/SRv6), and EVPN-VXLAN
- Junos OS Evolved with Paragon Automation integration
- Industrial-grade design with optional redundant power and timing support
