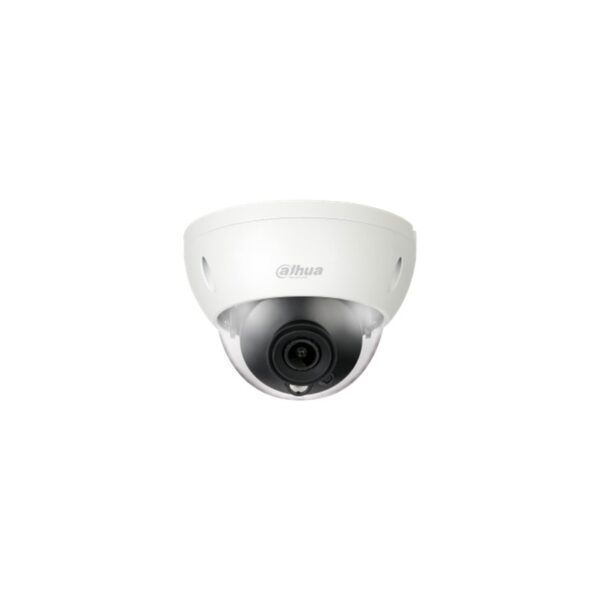

IPC-HDBW1531E Specification |
Camera |
Image Sensor | 1/2.7″ 5Megapixel progresive CMOS |
Effective Pixels | 2592(H)x1944(V) |
RAM/ROM | 512MB/32MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
Minimum Illumination | 0.03Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 30m(98ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 24 |
Lens |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8mm (3.6mm optional) |
Max. Aperture | F2.0/F2.0 |
Angle of View | H:96°/78°, V:70°/58° |
Aperture Type | Fixed |
Close Focus Distance | N/A |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 63(207ft) | 25(82ft) | 13(43ft) | 6(20ft) |
3.6 mm | 80(262ft) | 32(105ft) | 16(52ft) | 8(26ft) |
PTZ |
Pan/Tilt Range | Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355° |
Intelligence |
Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
IVS | Tripwire, Intrusion |
Video |
Compression | H.265/H.264H/MJPEG(Sub Stream) |
Smart Codec | Support H.265+/H.264+ |
Streaming Capability | 2 Streams |
Resolution | 5M(2592×1944)/4M(2688×1520)/3M(2304×1296/2 048×1536)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/VGA(640×480)/ CIF(352×288/352×240) |
Frame Rate | Main Strwam: 5M(1 ~ 15fps)/3M(1 ~ 25/30fps) |
Sub Stream: D1(1 ~ 25/30fps) |
Bit Rate Control | CBR/VBR |
Bit Rate | H.265: 12K ~ 8448Kbps H.264: 32K ~ 10240Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / WDR(120dB) |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image Stabilization (EIS) | N/A |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio |
Compression | N/A |
Network |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS |
Interoperability | ONVIF Profile S&G, API |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users/20 Users |
Edge Storage | NAS Local PC for instant recording |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, DMSS |
Smart Phone | IOS, Android |
Certifications |
Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Interface |
Video Interface | N/A |
Audio Interface | N/A |
RS485 | N/A |
Alarm | N/A |
Electrical |
Power Supply | DC12V, PoE(IEEE 802.3af)(Class 0) |
Power Consumption | < 6W |
Environmental |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Construction |
Casing | Metal |
Dimensions | Φ109.9mm x 81mm (4.33″ x 3.19″) |
