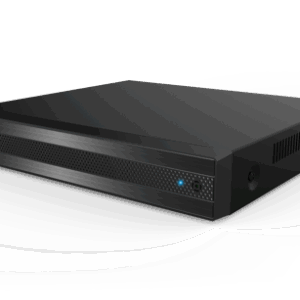

HWT-XVR620-A01 8CH
No customer reviews yet
8-channel 1-disk HD video recorder
8 CH TVI / AHD/CVI 1080P/1080P Lite/720P/WD1 video input
8 CH DVR supports 2 CH 1080P / 960P /720P IP video input by default
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / motion
Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
8CH analog video input can be switched to 8CH IP video input Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Playback : 8 CH simultaneously playback
Technical Spec
OS System Embedded Linux
Analog Video Input 8 BNC port
Input platform TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1
IP Video input 2 channels, 16Mbps
Total Input 10 channels
Playback 8 channels 60Mbps
Local decoding 8 channels Analog cameras
Local decoding 2 channels 5MP@25fps
HDMI One HDMI port, resolution: 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA One VGA port; resolutions: 1920 × 1080 / 1280 × 1024 / 1024 × 768
Preview 1/4/6/8/9/13/16 panes
Disks 1
Disk port SATA 2.0
Disk type Up to 8TB
Resolution 1080P Lite/ 720P/ 720P Lite/ WD1
Frame Rate Analog Channel:
Frame Rate 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC)
Frame Rate 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC)
Frame Rate IP Channel: 25fps(PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 4Mbps
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Video format H.264/H.265
Audio format G.711a/G.711u
Network protocols TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Device access BNC and ONVIF
Client access MAX 5 users
Management mode LDU
Functions Play, pause, FF, FB, digital zoom, etc.
Network port One RJ45 100Mbps
USB port 2 x USB 2.0 port (one on the front panel and one on the rear panel)
Audio input 1 channel, RCA port
Audio output 1 channel, RCA port (linear, 600Ω)
Operating temperature -10°C to 50°C
Operating humidity 10% to 90%
Power consumption ≤ 5 W (excluding hard disk and PoE output)
Power supply 12 V/1.5 A
Dimensions 42 mm (H) x 255 mm (W) x 222 mm (D)
Shelf 1 U
Certification CE
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
Technical Spec
| OS System | Embedded Linux |
| Analog Video Input | 8 BNC port |
| Input platform | TVI/AHD/CVI: 1080P/1080P Lite/720P/720P Lite/WD1 |
| IP Video input | 2 channels, 16Mbps |
| Total Input | 10 channels |
| Playback | 8 channels 60Mbps |
| Local decoding | 8 channels Analog cameras, 2 channels 5MP@25fps |
| HDMI | One HDMI port, resolution: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| VGA | One VGA port; resolutions: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| Preview | 1/4/6/8/9/13/16 panes |
| Disks | 1 |
| Disk port | SATA 2.0 |
| Disk type | Up to 8TB |
| Resolution | 1080P Lite/720P/720P Lite/WD1 |
| Frame Rate (Analog Channel) | 25fps (PAL)/30fps (NTSC) |
| Frame Rate (IP Channel) | 25fps (PAL)/30fps (NTSC) |
| Bit Rate | 32Kbps ~ 4Mbps |
| Search | Time slice/time/event/tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Video format | H.264/H.265 |
| Audio format | G.711a/G.711u |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Device access | BNC and ONVIF |
| Client access | MAX 5 users |
| Management mode | LDU |
| Functions | Play, pause, FF, FB, digital zoom, etc. |
| Network port | One RJ45 100Mbps |
| USB port | 2 x USB 2.0 ports |
| Audio input | 1 channel, RCA port |
| Audio output | 1 channel, RCA port (linear, 600Ω) |
| Operating temperature | -10°C to 50°C |
| Operating humidity | 10% to 90% |
| Power consumption | ≤ 5 W (excluding hard disk and PoE output) |
| Power supply | 12 V/1.5 A |
| Dimensions | 42mm (H) x 255mm (W) x 222mm (D) |
| Shelf | 1 U |
| Certification | CE |
