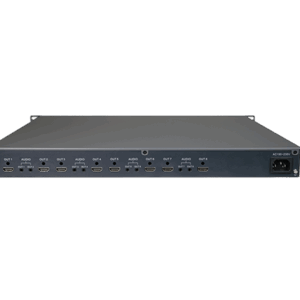

HWT-DEC808 - Image 1

HWT-DEC808

No customer reviews yet

Network Matrix with 8 HDMI output

  • Support network mediainput
  • Support multipleresolution of output, it can manually set output resolution
  • Output supports maximum 3840×2160@60Hz
  • Support 4K, 1080P, 1080I, 720P, D1 video formats
  • H265/H264 compatible
  • Support 4ch 4K or 64ch 1080P or 128ch 720P decodingand display
  • Support video-splitting output, up to 64 windows split onone monitor

GNTME · PRODUCT ENQUIRY

Get a quote for your project

Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.

Request a quoteWhatsApp this model

Buying several items? Include your model list in the enquiry.

Categories: ,

Description

Technical Spec

Output8ch HDMI output
Ethernet100M/1000M self adaptive
Audio input4ch，by Ф3.5 audio interface
Audio output4ch，by Ф3.5 audio interface
Alarm outputsupport network alarm input
USB2.0support
RS232/422/485support
Network video decodingH.265,H.264
Network video input4K, 1080P,1080I,720P,D1
HDMI ouput resolution1024×768P@60hz,1280×720P@60hz,1366×768P@60hz, 1920×1080P@60hz,3840×2160@60hz
Video decode and display8ch 4K or 64ch 1080P or 128ch 720P or 256ch D1
Monitor splicing8 monitor to splice and display one video
Splitmaximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define.
OSDWindow, Channel,label, alarm, etc. information
Audio CodecG.711,G.726,ADPCM encode/decode
On/MuteSupports all channels and single channel set individually
Audio input4ch audio encode, it can open/close audio input.
Power supplyAC100 to 230
