Description
Product Overview

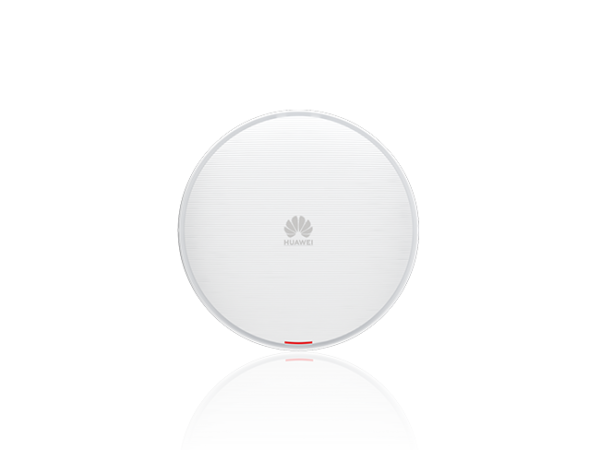

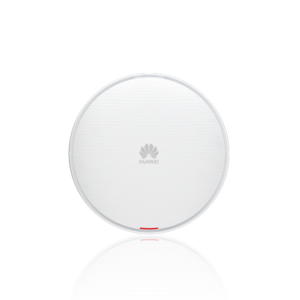

Huawei AirEngine 5760-51 is a next-generation indoor wireless access point built on the Wi-Fi 6 (802.11ax) standard. Designed for enterprise environments requiring high capacity, low latency, and reliable wireless connectivity, the device combines Huawei Smart Antenna technology with Software-Defined Radio (SDR) capabilities to improve wireless coverage and user experience.
The AirEngine 5760-51 supports flexible switching between dual-radio and triple-radio operating modes, enabling organizations to optimize wireless resources based on traffic demands and deployment requirements. The platform is suitable for enterprise offices, educational institutions, healthcare facilities, hospitality venues, and other high-density wireless environments.
Technical Architecture
- Product Family: Huawei AirEngine 5700 Series
- Model: AirEngine 5760-51
- Product Type: Indoor Wi-Fi 6 Access Point
- Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
- Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2/ax
- Radio Architecture: Dual-Radio / Triple-Radio Operation
- 2.4 GHz Radio: 2×2 MIMO
- 5 GHz Radio: 4×4 MU-MIMO
- Maximum Throughput: Up to 5.37 Gbps
- RTU License Throughput: Up to 5.95 Gbps
- Ethernet Ports: 1 × 5GE and 1 × GE Electrical Port
- Antenna Type: Built-in Smart Antennas
- IoT Expansion: Built-in IoT Slots
- Power Supply: IEEE 802.3bt PoE or 48V DC
Key Features
- Wi-Fi 6 (802.11ax) wireless technology
- Software-Defined Radio (SDR) architecture
- Flexible dual-radio and triple-radio operation
- Built-in Huawei Smart Antenna technology
- 5 Gigabit Ethernet uplink connectivity
- High-density user support
- MU-MIMO wireless performance optimization
- Integrated IoT expansion capabilities
- Independent interference scanning functionality
- Enterprise-grade wireless coverage optimization
- Support for cloud and controller-based WLAN deployments
- Designed for high-performance wireless environments
Deployment Scenarios
- Enterprise office environments
- Educational campuses and classrooms
- Healthcare facilities
- Hospitality and hotel deployments
- Conference and convention centers
- Government facilities
- Retail and commercial environments
- Service provider managed WLAN networks
- High-density wireless access deployments
Hardware / Software Features
- Built-in Smart Antenna technology
- Software-Defined Radio functionality
- Dual-radio and triple-radio deployment modes
- 5GE uplink interface
- Gigabit Ethernet management interface
- Integrated IoT expansion slots
- Independent radio-based interference scanning
- Cloud management support
- Controller-managed WLAN support
- Enterprise WLAN security capabilities
Performance Notes
- Maximum wireless throughput: Up to 5.37 Gbps
- RTU licensed throughput: Up to 5.95 Gbps
- Maximum supported users: Up to 1024 users in dual-radio mode
- Maximum supported users: Up to 1152 users in triple-radio mode
- 2.4 GHz throughput: Up to 575 Mbps
- 5 GHz throughput: Up to 4.8 Gbps
- Coverage performance depends on deployment design and RF conditions
- Actual user capacity varies according to environment and traffic patterns
Integration / Compatibility
- Compatible with Huawei WLAN controller platforms
- Supports cloud-managed wireless deployments
- Supports enterprise authentication and security frameworks
- Compatible with Wi-Fi 4, Wi-Fi 5, and Wi-Fi 6 client devices
- Supports enterprise network infrastructure integration
- Supports IoT expansion through integrated expansion slots
Frequently Asked Questions
Q1: What Wi-Fi standard does the Huawei AirEngine 5760-51 support?
A: The AirEngine 5760-51 supports the Wi-Fi 6 (802.11ax) standard and is backward compatible with previous Wi-Fi generations. :contentReference[oaicite:1]{index=1}
Q2: What is the maximum wireless throughput of the access point?
A: The access point supports wireless throughput up to 5.37 Gbps, which can increase to 5.95 Gbps with an RTU license. :contentReference[oaicite:2]{index=2}
Q3: Does the AirEngine 5760-51 support high-density deployments?
A: Yes. The platform is designed for high-density enterprise environments and supports up to 1024 users in dual-radio mode and up to 1152 users in triple-radio mode. :contentReference[oaicite:3]{index=3}
Q4: What network interfaces are available?
A: The access point provides one 5GE Ethernet port and one Gigabit Ethernet port. :contentReference[oaicite:4]{index=4}
Q5: Does the device support IoT integration?
A: Yes. The AirEngine 5760-51 includes built-in IoT expansion slots for future wireless and IoT deployments. :contentReference[oaicite:5]{index=5}
Q6: What environments is the AirEngine 5760-51 designed for?
A: The platform is designed for enterprise offices, campuses, healthcare facilities, hospitality environments, and other high-density indoor wireless deployments. :contentReference[oaicite:6]{index=6}
