Description
The Fortinet FortiGate 600D Firewall is an enterprise-grade next-generation firewall (NGFW) designed to deliver high-performance network security and threat protection. In addition, it combines advanced security services, application control, and intrusion prevention to help organizations protect critical business operations. As a result, businesses can strengthen network visibility, security, and performance.
Furthermore, the Fortinet FortiGate 600D Firewall provides centralized security management and comprehensive threat intelligence for enterprise environments.
Key Features
- Moreover, it delivers next-generation firewall protection for enterprise networks.
- In addition, advanced threat prevention helps identify and block cyber threats.
- Furthermore, application control and web filtering improve network security.
- It also supports secure VPN connectivity for remote users and branch offices.
- Additionally, intrusion prevention services help protect against network attacks.
- As a result, organizations can improve security while maintaining network performance.
- Furthermore, centralized management simplifies monitoring and administration.
- Finally, optional FortiCare and FortiGuard services provide enhanced support and threat intelligence.
FG-600D Specification |
| Type | FORTIGATE 600D |

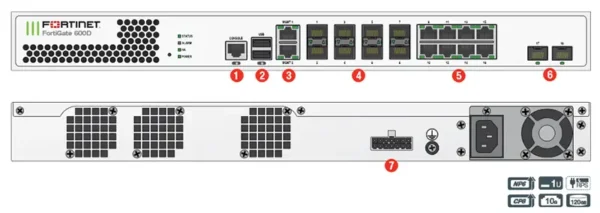

Interfaces and Modules |
| Hardware Accelerated GE SFP Slots | 2 |
| Hardware Accelerated GE RJ45 Ports | 8 |
| GE RJ45 Management Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 1x 120 GB SSD |
| Included Transceivers | 2 |
System Performance and Capacity |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 24 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 24 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 36 Mpps |
| Concurrent Sessions (TCP) | 5.5 Million |
| New Sessions/Second (TCP) | 270,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 2.2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3.5 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,400 |
| Application Control Throughput (HTTP 64K) | 9 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 10 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 1,000 |
| Maximum Number of Registered FortiClients | 2,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
System Performance — Optimal Traffic Mix |
| IPS Throughput | 7 Gbps |
System Performance — Enterprise Traffic Mix |
| IPS Throughput | 4 Gbps |
| NGFW Throughput | 3.8 Gbps |
| Threat Protection Throughput | 3 Gbps |
Dimensions and Power |
| Height x Width x Length | 1.75 x 17 x 12.68 inches 44.45 x 432 x 322 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) | 126 W / 191 W |
| Current (Maximum) | 110V/4A, 220V/2A |
| Heat Dissipation | 650 BTU/h |
| Redundant Power Supplies | Supports FRPS-100 |
Operating Environment and Certifications |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 45 dBA |
| Operating Altitude | Up to 9,843 ft (3,000 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
