E700X-16(01)A
No customer reviews yet

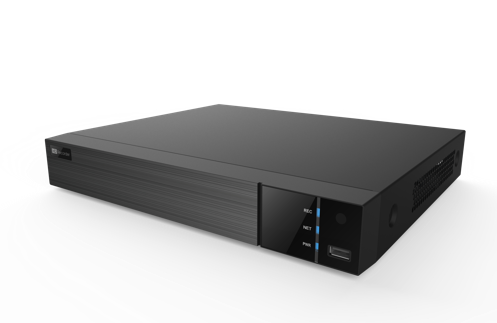

16CH Analog HD Video Recorder
- Support 16-Ch IP Camera Inputs
- 1HDD with Maximum Capacity of 14T
- Support HDMI & VGA Simultaneous Output
- Support Smart AI
- Support H.264 & H.265 Video Compression
- Note: Technical spec may vary depending on the model. For precise parameters, please refer to theof the corresponding model.
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
Technical Spec
| Analog Video Input | 16 BNC port |
| Input Resolution | TVI/AHD/CVI: 5MN@12fps/4MN@15fps/1080P@30fps |
| IP Video input | 16 channels, 80Mbps |
| Total Input | 16 channels |
| Playback | 8CH (5MP-N coaxial input), 8CH (Coaxial or Hybrid mode), 8CH IP mode |
| Local decoding | 4*5MN@5fps/16*D1@12fps |
| Resolution | 5MN/4MN/1080P/1080N |
| Frame Rate | Analog Channel: 5MN@5fps/4MN@7fps/1080P@7fps/1080N@14fps, IP Channel: 5MP@25fps |
| Bit Rate | 128Kbps ~ 12288Kbps |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Operating temperature | -10°C to 55°C |
| Operating humidity | 10% to 90% |
| Power consumption | ≤ 10 W (excluding hard disk) |
| Power supply | 12 V/2 A |
| Dimensions | 44 mm (H) x 215 mm (W) x 255mm (L) |
| Size | 280mm*260mm*50mm (L*W*H) |
| Weight | 767g |
