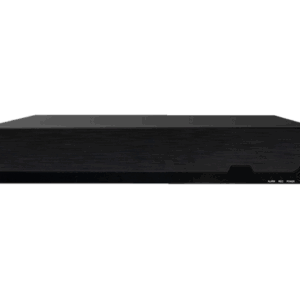

E700-32(02)A - Image 1
E700-16(02)A-16P
E700-4(01)A-04P

E700-32(02)A

32-Channel 2-Disk Video Recorder

  • Support 32-ch IP Camera Inputs
  • 2HDD With Maximum Capacity of 14T
  • Support H.264&H.265 Video Compression
  • Support Smart AI
  • Support HDMI&VGA Simultaneous Output
Categories: , ,
Related Products :P1-2R(2.8-12)A AIE3U-2LRV(2.8) AI LiteP4-4R(2.8)A
whatsapp us
Enquiry Now

Description

Technical Spec

Video input32 channels, 4K
Playback/DownloadNTSC@30fps, PAL@25fps 150 Mbps incoming, 150 Mbps recording and 150 Mbps outgoing
Local decodingAI disabled: 1-channel 8 MP@20 fps; 2-channel 5 MP@30 fps; 4-channel 3MP@30 fps
Recording modeTimed recording, motion detection recording, manual recording, intelligent recording
Recording playback4*4K@15fps / 4*5MP@25fps
Search modeBy time, recording type, or AI event
Download modeIn batches or by segment
Operating temperature-10°C to 50°C
Operating humidity10% to 95%
Power consumption≤ 15 W (without hard disk)
Power supply12 V/5 A
Device Dimensions255mm*215mm*44mm (L*W*H)
Weight800g
Package Size370mm*280mm*75mm (L*W*H)
