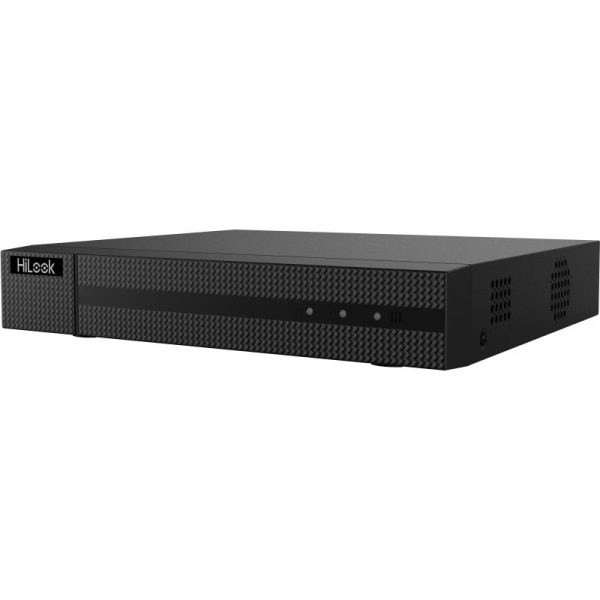

DVR-208G-F1/Iraq

8-ch 1080p Lite 1U H.264 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
Supports 1080p lite, and when enabled the image effect is similar with 1080p
Encoding abilty up to 1080p lite @ 12 fps
One HDD for continuous video recording
Smart search for efficient playback.

Categories: HIKVISION, IP Surveillance & CCTV

Enquiry Now

Description

Description

Perimeter Protection
Line Crossing Detection/Intrusion Detection1-ch

Video and Audio
IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.264+/H.264 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback8-ch

Recording
Video CompressionH.264+/H.264
Encoding Resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 4 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Network
Remote Connection64
Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 6 TB capacity for each disk
USB InterfaceN/A
Alarm In/OutRear panel: 2 × USB 2.0

General
Power Supply12 VDC, 1.5 A
Consumption≤ 12 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
≤ 1 kg (2.2 lb)
