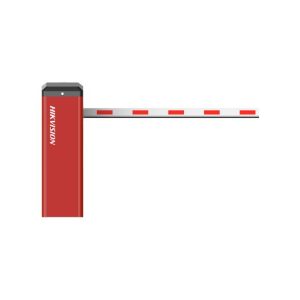

DS-TMG520-H 3m octagonal
No customer reviews yet

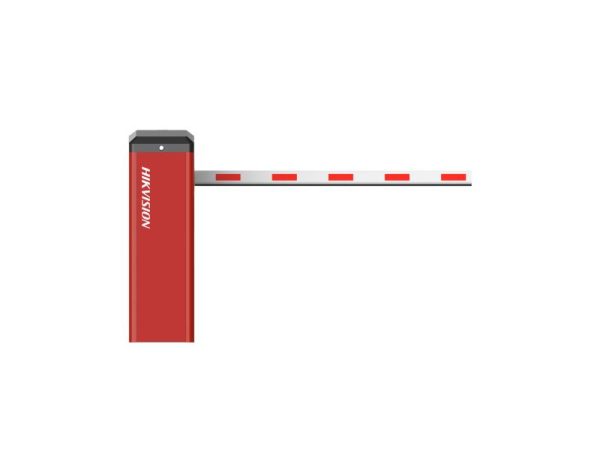

Barrier gates with straight boom pole
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
- Package
- Barrier Housing Dimensions (L × W × H)1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch)
- Body Weight59.3 ± 5 kg (130.7 ± 11.0 lb.)
- Body Dimensions (with Package, Without Boom Pole) (L × W × H)1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)
- Barrier Housing
- Barrier Housing MaterialSGCC
- Barrier Housing Thickness2.0 mm
- Barrier Housing Door Thickness1.5 mm
- Barrier Housing ColorOrange
- Barrier Housing Door ColorOrange
- Boom Pole Installation Height880 mm
- Body Indicatorswithout indicator
- Barrier Gate General
- Matched Boom Pole Type
Round boom pole: 1 to 4 m
anti-collision Octagonal boom pole: 1 to 6 m
Octagonal telescopic boom pole: 4 to 6 m
Boom pole ≥ 5 m: with spindle rod
- Rising/Falling Speed
DS-TMG520-H(3m):
Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S
Falling: 3S(Default) Adjustable 1.5S, 2S, 3S
DS-TMG520-M(4m):
Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(6m):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-M(4m telescopic pole):
Raising: 2S(Default) Adjustable 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(5m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-L(6m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
- Boom Pole Directionright by default, direction switchable
- Boom Pole Falling Delay10 s by default (configurable), min. 10 s (every 10 s followed a gap)
- Motor TypeDC brushless motor
- Number of Cycles5000000
- Working Voltage220 VAC ± 15%
- Remote Controller Frequency433 MHz
- Current1.5 A
- Consumption300 W
- Temperature and Humidity-30 °C to 70 °C (-22 °F to 158 °F)
- Rising Boom Pole for PoweroffOptional, not supported by default
- Barrier Gate
- Duty Cycle100%
- Interface
- Rising to Limit1 group
- Falling to Limit1 group
- Open1 group
- Close1 group
- Stop1 group
- IR/Inductive Loop/Radar1 group
- RS-4851 group
- Traffic Signal Light1 group, external power supply required, max. 220 VAC supported
- Network1 group (reserved)
- Boom Pole
- Boom Pole TypeOctagonal Straight Pole
- Boom Pole MaterialAL6061
- Boom Pole ColorWhite background with red bar
- Boom Pole Dimensions
2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch)
3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch)
4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch)
5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch)
6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch)
3 m boom pole with LED light bar: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch)
4 m boom pole with LED light bar: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch)
4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch)
5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch)
6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch)
2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch)
3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch)
4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch)
- Boom Pole Weight
2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.)
4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.)
5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.)
6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.)
3 m boom pole with LED light bar: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.)
4 m boom pole with LED light bar: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.)
4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.)
5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.)
6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.)
2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.)
4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.)
- Boom Pole Dimensions (with Package)
2 m octagonal boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch)
3 m octagonal boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch)
4 m octagonal boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch)
5 m octagonal boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch)
6 m octagonal boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch)
3 m boom pole with LED light bar: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch)
4 m boom pole with LED light bar: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch)
4 m octagonal telescopic boom pole: 120 × 51 × 3100 mm (4.72 × 2.01 × 122.05 inch)
5 m octagonal telescopic boom pole: 120 × 51 × 3500 mm (4.72 × 2.01 × 137.80 inch)
6 m octagonal telescopic boom pole: 120 × 51 × 4005 mm (4.72 × 2.01 × 157.68 inch)
2 m anti-collision round boom pole: 90 × 90 × 2030 mm (3.54 × 3.54 × 79.92 inch)
3 m anti-collision round boom pole: 90 × 90 × 3030 mm (3.54 × 3.54 × 119.29 inch)
4 m anti-collision round boom pole: 90 × 90 × 4030 mm (3.54 × 3.54 × 158.66 inch)
- Boom Pole Weight (with Package)
2 m octagonal boom pole: 2.37 ± 0.3 kg (5.22 ± 0.66 lb.)
3 m octagonal boom pole: 3.11 ± 0.3 kg (6.86 ± 0.66 lb.)
4 m octagonal boom pole: 3.965 ± 0.3 kg (8.74 ± 0.66 lb.)
5 m octagonal boom pole: 7.01 ± 0.3 kg (15.45 ± 0.66 lb.)
6 m octagonal boom pole: 8.245 ± 0.3 kg (18.18 ± 0.66 lb.)
3 m boom pole with LED light bar: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.)
4 m boom pole with LED light bar: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.)
4 m octagonal telescopic boom pole: 5.11 ± 0.3 kg (11.27 ± 0.66 lb.)
5 m octagonal telescopic boom pole: 6.23 ± 0.3 kg (13.73 ± 0.66 lb.)
6 m octagonal telescopic boom pole: 7.25 ± 0.3 kg (15.98 ± 0.66 lb.)
2 m anti-collision round boom pole: 2.7 ± 0.3 kg (5.95 ± 0.66 lb.)
3 m anti-collision round boom pole: 4.3 ± 0.3 kg (9.48 ± 0.66 lb.)
4 m anti-collision round boom pole: 5.8 ± 0.3 kg (12.79 ± 0.66 lb.)
- Approval
- RF
CE-RED
EN 300220-1 V3.1.1
EN 300220-2 V3.1.1
EN 301489-1 V2.2.3
EN 301489-3 V2.1.1
EN IEC 62311: 2020
- EMC
CE-EMC：
EN 55032: 2015 + A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019 + A1: 2021,
EN 61000-3-3: 2013 + A1: 2019 + A2: 2021,
EN 50130-4: 2011 + A1: 2014
- Security
CE-LVD:
EN 62368-1: 2014 + A11: 2017
CB:
IEC 62368-1: 2014
IEC 62368-1: 2018
- EnvironmentROHS
- ProtectionIP54
