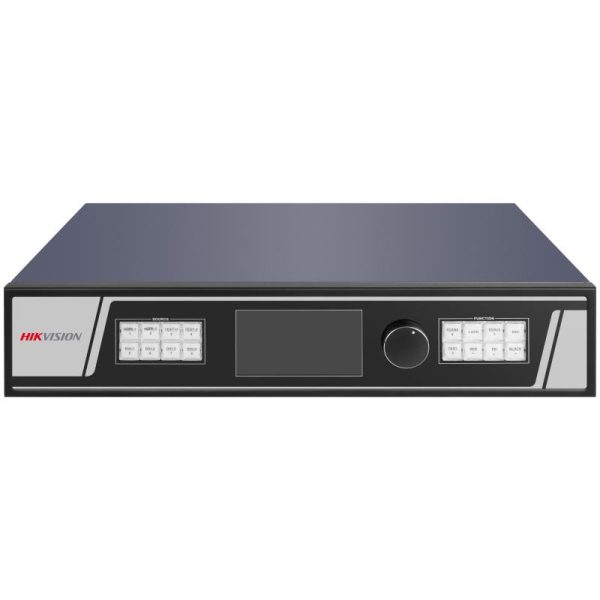

DS-D42V24-H
No customer reviews yet
LED Control Card
- Multiple Signal Interfaces: 6 channels of video signal input (2 × HDMI 2.0 and 4 × DVI), 6 channels of video signal output (2 × HDMI 2.0 and 4 × DVI); 1 channel of HDMI 1.4 output for pre-monitoring; 1 channel of 3D signal synchronization output for 3D display.
- Ultra-Large Load Capacity: 24 channels of network interface with the resolution of up to 15.60 MP.
- HDR Output: Provides more lively and colorful image with high quality and clear details.
- Multi-Windows Display: Free layout of 9 windows with 6 signal input windows and 3 picture/text windows; free switching, cutting, stitching, and zooming in/out.
- Output Signal Pre-Monitoring: Sends the output signal to your monitor through the HDMI interface.
- Self-Stitching Display: Larger scale stitching display achievable through self-stitching of multiple controllers (a cascade of up to 4 controllers allowed), ensuring the synchronization within different controllers.
- Scenes Configurable: Up to 10 scenes can be configured and saved as templates for convenience.
- EDID Settings Customizable: HDCP 2.2 protocol for high-bandwidth digital content protection.
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
- Product Type
- Product TypeLED Display Controller
- Interface
- Video & Audio Input
2 × HDMI interface, Max. resolution: 4096 × 2160@60 Hz
4 × DVI interface, Max. resolution: 1920 × 1200@60 Hz
- Video & Audio Output
1 × HDMI interface for pre-monitoring, Max. resolution: 1920 × 1080@60 Hz
2 × HDMI interface, Max. resolution: 4096 × 2160@60 Hz
4 × DVI interface, Max. resolution: 1920 × 1200@60 Hz
24 × network interface
- Control Interface
1 × RJ45 10/100/1000 MB self-adaptive
- Processing Performance
- Max. Load Capacity15.60 MP
- Brightness Control1 to 100 levels adjustable (gradual white balance)
- Frame Frequency60 Hz
- Grey Level16 bit
- Max. Resolution of Bar Display5000 × 256 pixels
- Display Color2^16× 2^16 × 2^16
- Processing Depth8 bit, 10 bit
- Power
- Max. Consumption60 W
- Average Consumption45 W
- Input Voltage100 to 240 VAC
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 80%
- Storage Temperature-10 ℃ to 60 ℃ (14 ℉ to 140 ℉)
- Storage Humidity10% to 80%
- General
- Product Dimensions (W × H × D)442 mm × 309.5 mm × 88 mm (17.40” × 13.33” × 3.62”)
- Package Dimensions (W × H × D)572 mm × 396 mm × 163 mm (22.52” × 15.59” × 6.42”)
- Net Weight5.25 kg (11.57 lb.)
- Gross Weight7.25 kg (15.98 lb.)
