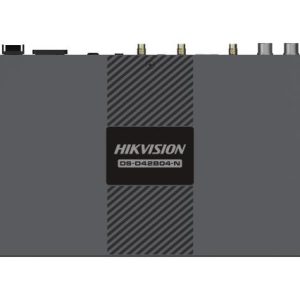

DS-D42B04-N
No customer reviews yet
LED controller
- Loading capacity up to 2,600,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
- 4x Gigabit Ethernet ports
- 1x HDMI1.4 output port, support up to 1080P@60Hz
- 1x HDMI1.4 input port, support full-screen scaling in synchronous mode
GNTME · PRODUCT ENQUIRY
Get a quote for your project
Send your quantity, delivery destination and required configuration. Ask us to confirm availability, condition and warranty in your quotation.
Buying several items? Include your model list in the enquiry.
- Description
- Reviews (0)
Description
- Processing Performance
- Brightness Control1-100 Levels
- Frame Frequency30HZ-60HZ
- Grey Level256
- Display Color1 Billion
- Processing Depth8bit
- Image ScalingSupport
- Product Model
- Product ModelDS-D42B04-N
- Chassis
- Chassis Height0.9U
- Chassis Width3.12U
- Product Type
- Product TypeLED Controller
- LED Controller Power
- Average Consumption≤18W
- Number of power interfaces1
- Power interface specifications100-240V~，50/60Hz，0.6A
- General
- Working Temperature-20℃～+60℃
- Storage Humidity0%RH～80%RH
- Working Humidity0%RH～80%RH
- Storage Temperature-40℃～+80℃
- Packaging Size (W × H × D)385.0mm×280.0mm×75.0mm
- Net Weight1230.4g
- Gross Weight1650g
- Dimensions (W × H × D)274.3mm×139.0mm×40.0mm
- Packing List
1x Wi-Fi omnidirectional antenna
1x AC power cord
1x Quick Start Guide
1x Packing list
- Audio Input
- Audio Input Interface(s)1
- Audio Input Interface TypeHDMI INLINE
- Video Input
- Video Input Interface(s)1
- Video Input Interface TypeHDMI1.4
- Max. Input Resolution1080p@60hz
- Video Input Resolution1080p@60hz
- Video Input Processing Characteristics
Processing depth 8 BIT
Sampling format:
RGB:444
YUV:444
YUV:422
- Video Output
- Max. Output Resolution2.3 Million
- Loading Capacity for Video Output to LED
Single port with load 650000
Width 64~4096
Height 64~4096
- LED Loading Interfaces4
- LED Loading Interface TypeRJ45
- Number of video ring pass output interfaces1
- Video looping output interface typeHDMI1.4
- Video looping output resolution1080p@60hz
- Audio Output
- Audio Output Interface(s)1
- Audio Output Interface Type1 LINE OUT 3.5mm audio out
- Front Panel
- ScreenNA
- KeySWITCH
- pilot lamp
PWR:RED,
Staying on-The power supply is working properly
SYS:GREEN,
Flashing once every 2s-The operating system is functioning normally
Staying on/off-The operating system is malfunctioning
CLOUD:GREEN
Staying on-The DS-D42B04-N is connected to the Internet and the connection is available
Flashing once every 2s-The DS-D42B04-N is connected to VNNOX and the connection is available
Flashing once every second-The DS-D42B04-N is upgrading the operating system
Flashing once every 0.5s-The DS-D42B04-N is copying the upgrade package.
RUN:GREEN
Flashing once every second-The FPGA has no video source
Flashing once every 0.5s-The FPGA is functioning normally
Staying on/off-The FPGA loading is abnormal
- Control Interface
- Control network port
4xRJ45, 10M/100M/1000M adaptive Ethernet ports
Used to connect to external networks, can support multi-device network cascade management
- 3D interfaceNA
- IR inputNA
- Serial Interface1XGigabit Ethernet port
- Light perception2XSENSOR
- USB1XUSB 3.0
- On-offSwitch
