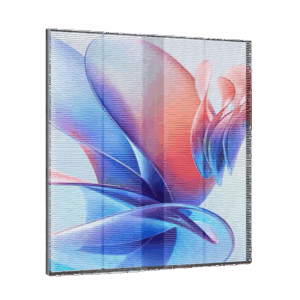

Display P0307G-O - Image 1
Display E15-SI
Display P03T-I

Display P0307G-O

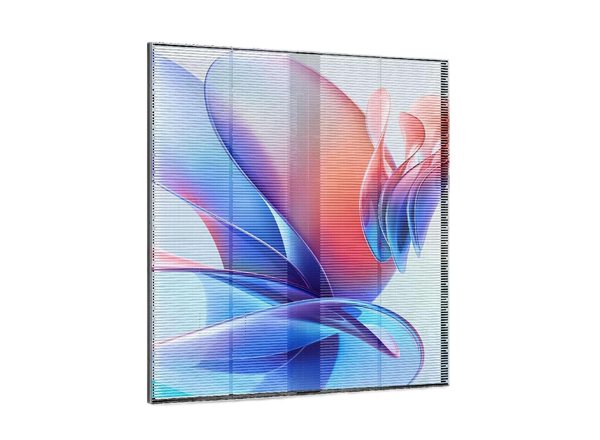

LED Outdoor Display / LED Transparent Screen

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display
  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs)
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged
Categories: ,
Related Products :U1-4R(4)A-ThU9-4R(33x)A-Ex AIT500-A
whatsapp us
Enquiry Now

Description

Technical Spec

Pixel PitchL(3.91mm) * W(7.82mm)
Pixel Density32768 pixels/㎡
Display Thickness8cm
LED ChipChip SMD1921
Product SizeModule Size: 500*125mm Cabinet Size: 1000*1000mm
Power ConsumptionAverage: 240W/㎡, Maximum: 800W/㎡
Screen Weight≤12kg/㎡
Screen Transparency>50%
IP RatingIP65
Average Lifespan≥100,000 operating hours
Power Requirements220V±10%; AC50HZ
Screen Brightness1500-5500cd/㎡
Viewing DistanceClear image visible at 6m-250m distance
Viewing AngleHorizontal ≥160°, Vertical ≥140°
Gray Level≥16 bit
Color Temperature5500K-15000K (Adjustable)
Driving Method1/6S
Attenuation RateLess than 0.05% in 2 years
Refresh Rate≥3840HZ
Frame Rate≥60HZ
Average Operating Time≥10,000 hours
Led Chip Failure Rate≤1/10,000
Control SystemColorlight/Novastar, Synchronous/Asynchronous
Operating Environment-10~+65 ℃/ 10~90 %RH
Storage Environment-40+85 ℃/ 10~90 %RH
Installation MethodHanging Installation; Fixed Installation
