Description

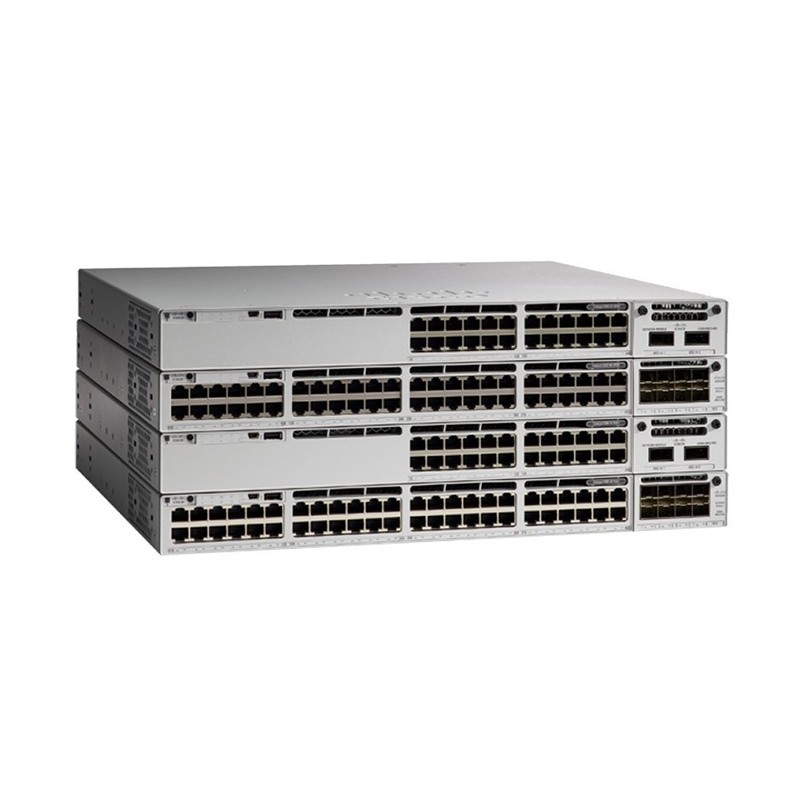

The C9300X-24Y-E Cisco Catalyst 9300X Series Switch is a high-performance enterprise stackable Layer 3 network switch designed for secure access, high-speed fiber connectivity, and cloud-ready networks.
It features 24 x 25G/10G/1G SFP28 ports with modular uplinks, enabling flexible deployment for campus, data center edge, and high-density enterprise environments. The switch runs Cisco IOS XE and supports Cisco DNA Essentials licensing, enabling automation, analytics, and advanced security capabilities.
Built with StackWise technology, the C9300X platform delivers high availability with sub-50 ms failover, while StackPower architecture provides resilient power sharing across stacked switches.
This switch is ideal for high-speed fiber aggregation, Wi-Fi 6 deployments, campus core/access layers, and Software-Defined Access (SD-Access) networks.
Key Features
24 x 25G / 10G / 1G SFP28 fiber ports
Modular uplink architecture for flexible expansion
Layer 3 managed switch with advanced routing
Cisco IOS XE operating system with programmability
StackWise technology for high-availability stacking
StackPower power sharing architecture
Supports Cisco DNA Essentials licensing (3, 5, or 7-year subscription required)
Rack-mountable enterprise switch
Dual redundant power supply support
Technical Specifications
Model: C9300X-24Y-E
Ports: 24 × 25G/10G/1G SFP28
Switch Type: Managed Layer 3
Switching Capacity: ~2 Tbps
Forwarding Rate: 1488 Mpps
Stacking: StackWise up to 1 Tbps bandwidth
Operating System: Cisco IOS XE
Rack Size: 1U
MAC Address Table: 32K entries
