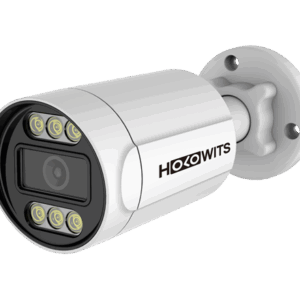

A1A IR Series
2MP Analog Bullet Camera
- 【A1A-2R(2.8)】: 2MP IR Bullet Camera
- 【A1A-2R(3.6)】: 2MP IR Bullet Camera
- Note: Technical Spec may vary depending on the model. For precise parameters, please refer to the datasheet of the corresponding model
- Description
Description
Technical Spec
CAMERA
| Image Sensor | 1/3”CMOS/1920(H)*1080(V) |
| Max Aperture | F2.0 |
| Lens Aperture Type | Fixed iris |
| Focal Length | 2.8mm/3.6mm |
| IR Range | 20m |
VIDEO/IMAGE
| Video Frame Rate | Default 2MP 25fps(P)/30fps(N) |
| Min Illumination | 0.02lux |
| Day/Night Mode | Color |
| White Balance | Auto |
| AES | Auto |
| BLC | Auto |
| SNR | ≥50dB |
| Main Stream | Default 2MP 25fps(P)/30fps(N) |
| Signal System | PAL/NTSC (Switched by OSD) |
| Video Output | AHD/TVI/CVI/CVBS |
AUDIO
| Built-In Speaker | Not supported |
| Built-In Microphone | Not supported |
NETWORK
| Compatible VIP/NVR/XVR | E700X Series XVR |
| Cloud Service | HOLOZ |
PORT
| Network Port | 10M/100M Ethernet, RJ45 port |
GENERAL SPECIFICATIONS
| Power Type | 12 VDC 0.5A |
| Power Consumption | Day ≦3W Night ≦6W |
| Operating Temperature | -20°C to 60°C (-22°F to 140°F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| IP Rating | IP67 |
| Weight | 293g |
| Dimension | 165mm*75mm*75mm (L*W*H) |
| Material | Metal |
| Language | English/Chinese/Russian/Japanese/Korean |
