817746-B21

HPE 817746-B21 Specification

Product Number

817746-B21

Product Description

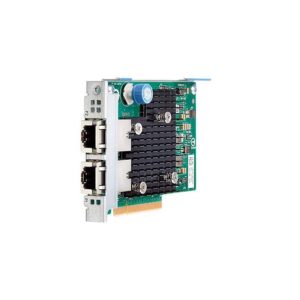

HPE Ethernet 10Gb 2-port 562FLR-T FIO Adapter

Supported Devices

HPE ProLiant DL120 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL160 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL180 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL360 Gen10 Server(562FLR-T, 562T)

HPE ProLiant DL380 Gen10 Server(562FLR-T, 562T)

HPE ProLiant DL560 Gen10 Server(562FLR-T, 562T)

HPE ProLiant DL580 Gen10 Server(562FLR-T, 562T)

HPE Apollo 2000 – XL170r Gen10 Server(562FLR-T, 562T)

HPE Apollo 2000 – XL190r Gen10 Server(562FLR-T, 562T)

HPE Apollo 4500 – XL450 Gen10 Server(562FLR-T, 562T)

HPE Apollo 6000 – XL230k Gen10 Server(562T)

HPE ProLiant ML110 Gen10 Server(562T)

HPE ProLiant ML350 Gen10 Server(562T)

Network Processor

Intel X550-AT2

Data Rate

Two ports, each at 20 Gbps bi-directional; 40 Gbps bi-directional theoretical bandwidth.

Bus type

PCIe 3 x4

Form Factor

FlexibleLOM(562FLR-T) and Stand up (562T)

IEEE Compliance

802.3ad, 802.3X, 802.1q, 802.1Qau, 802.1Qaz, 802.1Qbb, 802.1Qbg, IEEE1588, 802.1AS

Connector

RJ-45(two)

Power

10.50W typical, 14.50W maximum (562FLR-T)

11.15W typical, 15.56W maximum ( 562T)

Temperature – Operating

5° to 60° C (41° to 140° F)

Temperature – Non-Operating

-40°C to 70°C / -40°F to 158°F

Humidity – Operating

System relative humidity: Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity. noncondensing.

Humidity – Non-operating

5 to 95% relative humidity, non-condensing.
