WS-C3560X-48T-L Datasheet
C9410-ACC-KIT= Datasheet

WS-C3560X-24P-L

0 out of 5

Original price was: $4,800.00.Current price is: $1,006.00.

< tbody >

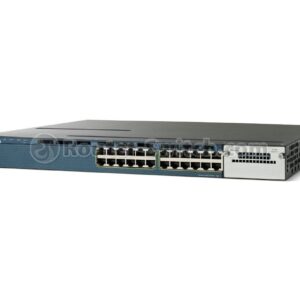

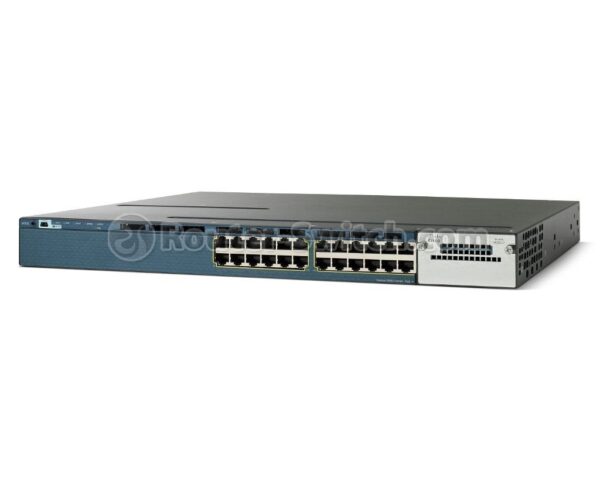

Model: WS-C3560X-24P-L Catalyst 3560-X Switch
Detail: Cisco Catalyst 3560X-24P-L Switch Layer 2 – 24 x 10/100/1000 Ethernet PoE+ Ports – LAN Base – Managed
Categories: ,
Enquire Now
Enquiry
Add to wishlist

Description

Cisco 3560X Ethernet Switch – 24 port switch – 24 x POE – 2 x Expansion Slots – 10/100/1000Base-T (WS-C3560X-24P-L).

The Cisco Catalyst 3560-X switch is a venture class independent switch. This switch gives security, energy proficiency, and simplicity of activity with inventive highlights. The Cisco Catalyst 3560-X upgrades profitability by empowering applications like IP communication, remote, and video for borderless organization experience

Related Products



WS-C3560X-24P-L data sheet
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-24P-L
Product Type Switch – 24 ports – Managed
Form Factor Rack mountable – 1U
Switch Ports 24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slots Total (Free) 1 ( 1 ) x Expansion Slot
Power Supply
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 46 cm
Height 4.5 cm
Weight 7.1 kg
Rack Mounting Kit Optional
MTBF 181,370 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS LAN Base
