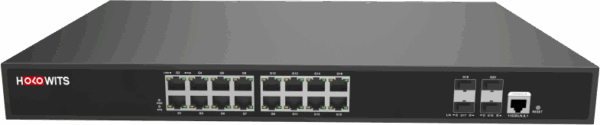

| Fixed Port |
16*10/100/1000Base-T PoE ports (Data/Power), 4*100/1000Base-X uplink SFP slot ports (Data), 1*RS232 console port (115200,N,8,1) |
| Ethernet Port |
Port 1-16 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100m), 100BASE-TX: Cat5 or later UTP(≤100m), 1000BASE-T: Cat5e or later UTP(≤100m) |
| SFP Slot Port |
Gigabit SFP optical fiber interface, optional single-mode/multi-mode, single/dual fiber (LC) |
| Optical Cable/Distance |
500M, single mode: 1310nm (0~40KM), 1550nm (0~120KM) |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Forwarding Mode |
Store and Forward (Full Wire Speed) |
| Switching Capacity |
56Gbps (non-blocking) |
| Forwarding Rate@64byte |
29.76Mpps |
| MAC |
8K |
| Buffer Memory |
4.1MB |
| Jumbo Frame |
10000 Bytes |
| LED Indicator |
Power: PWR (Yellow), System: SYS (Yellow), Network: Link/Act (Yellow), PoE: PoE (Green), Fiber: L/A (Green) |
| MTBF |
≥100000h |
| PoE Port |
Port 1 to 16, IEEE802.3af/at |
| Power Supply Pin |
Default 1/2 (+), 3/6 (-) |
| Max Power Per Port |
30W, IEEE802.3af/at |
| Total Power/Input |
250W (AC100-240V) |
| Power Consumption |
Standby: <16W, Full load: <240W |
| Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Operation TEMP / Humidity |
-20~+55°C; 5%~90% RH Non-condensing |
| Storage TEMP / Humidity |
-40~+75°C; 5%~95% RH Non-condensing |
| Dimension (L*W*H) |
440*290*44.5mm |
| Net / Gross Weight |
<3.6kg / <4.6kg |
| Installation |
Desktop, 19 inch 1U cabinet |
| Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty |
1 year |
