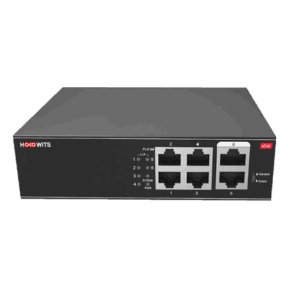

NSW E706A

6-Port Full Gigabit PoE Switch

Supports IEEE 802.3x full-duplex flow control and Backpressure
The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading the device
Low power consumption, galvanized steel casing, no fan
Self-developed power supply, high redundancy design, providing long-term and stable PoE power output
4×10/100/1000Base-T PoE ports (Data/Power) and 2×10/100/1000Base-T uplink RJ45 ports (Data)
Supports 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Jumbo Frame: 9.2K, Buffer Memory: 2M, MAC: 8K
Built-in power supply, AC100~240V 50-60Hz 1.1A, Total Power / Input: 65W
Operating Temp/Humidity: -20~+55°C; 5%~90% RH Non-condensing
Supports desktop and wall-mounted installation
Lightning protection: 4KV 8/20us, Protection level: IP30
Certification: CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty: 1 year

Category: Transmission

Fixed Port	410/100/1000Base-T PoE ports (Data/Power), 210/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port	Port 1-6/1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-TX: Cat5 or later UTP(≤250 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter)
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	12Gbps (Non-blocking)
Forwarding Rate@64byte	8.93Mpps
MAC	8K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link (Green), PoE: PoE (Green)
MTBF	≥100000h
PoE Port	Port 1 to 4
Power Supply Pin	Default 1/2(+), 3/6(-)
Max Power Per Port	30W, IEEE802.3af/at
Total Power/Input	65W/ (AC100-240V)
Power Consumption	Standby<5W, Full load <65W
Power Supply	Built-in power supply, AC100~240V 50-60Hz 1.1A
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	14011540mm
Net / Gross Weight	<0.55kg / <0.8kg
Installation	Desktop, wall-mounted
Lightning Protection / Protection Level	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year
