| Product model |

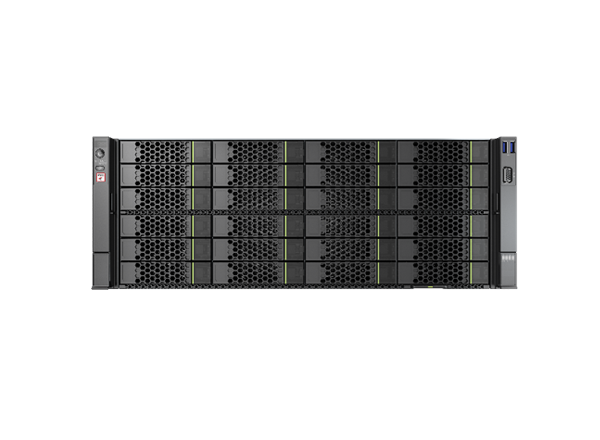

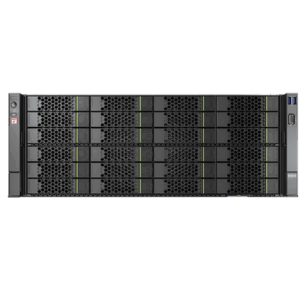

4U 2-socket rack |
| Processor |
2 x 32-core Kunpeng 920 processors, 2.6 GHz frequency |
| Memory |
64 GB (32 GB x 2) DDR4, 2933 MHz |
| System disk |
2 x 3.84 TB SAS SSD |
| Video and image storage |
Up to 34 x 8 TB/10 TB/16 TB SATA |
| Super coding Card |
Up to 6 Super Coding cards |
| Network Interface |
4*GE electrical ports + 4*10GE optical ports |
| Management function |
Containerized video and image management software, on-demand deployment of storage and forwarding services |
| Service function |
Camera management, live video viewing, recording playback, and video wall management |
| Coding standard |
H.264, H.265, and MJPEG formats |
| Network protocol |
TCP, UDP, IPv4, IPV6, HTTP, HTTPS, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SMTP |
| Data protection |
SafeVideo: RAID group failure, recording readable and writable |
| Value-added features |
Supports direct stream storage, requiring no additional storage and forwarding servers for streaming media Supports backup modes, such as real-time and historical videos and images |
| Videos and image concurrent access and storage |
A maximum of 800 video channels at 2 Mbit/s, 3000 images channels or 1280 images per second |
| Forwarding |
A maximum of 800 video channels at 2 Mbit/s, 3000 images channels or 1280 images per second |
| Super Coding |
A maximum of 450 channels @1080p Super Coding storage for 90 days |
| Southbound interconnection |
Access plug-in integration, supports ONVIF, GB/T 28181, and video SDKs of mainstream camera vendors |
| Northbound interconnection |
Supports interconnection with multiple video management platforms through RESTful interfaces |
| Environmental Requirements |
Operating temperature: 5 ~ 35°C storage temperature: -40°C ~ + 65°C Operating humidity: 8% to 90%; non-condensing storage humidity: 5% to 95%; non-condensing |
| Power supply |
2 x hot-swappable 2000 W AC PSUs in 1+1 redundancy mode Input voltage: 100-240VAC, 50/60Hz |
| Fan |
4 x hot-swappable fan modules in N+1 redundancy mode |
| Size (W x D x H) |
447 mm x 790 mm x 175 mm |
| Power consumption |
Typical power consumption 1025W; Maximum power consumption 1130W |
