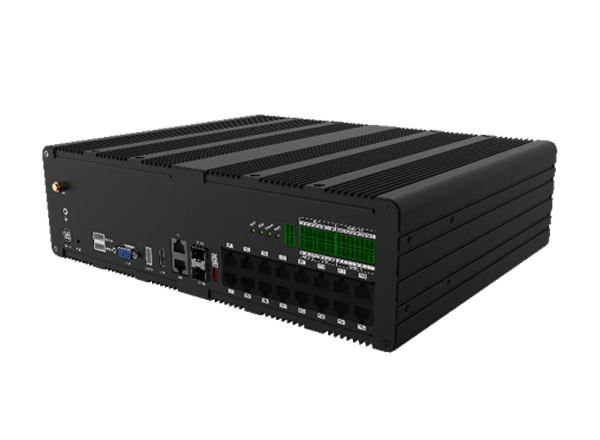

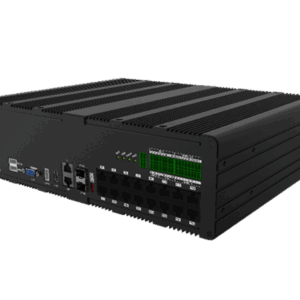

MV3500-16
Intelligent Management Terminal 16CH
- Supports connection to a maximum of 16 HD network cameras
- Large storage capacity
- 18 built-in GE electrical ports and 2 built-in GE optical ports, enabling easy connection to network cameras
- Supports image combination, on-screen display (OSD), combination of vehicle front and rear images, deduplication of the same license plate images, and fault rectification
- Image and data protection against tampering and accidental deletion
- Supports traffic flow statistics, point-to-point speed measurement, and blocklist- and trustlist-based management
- Supports simple network management protocol (SNMP)
- Supports a variety of security verification methods, including secure login, web session ID, encrypted data transmission, and firmware integrity check
- Supports access to cameras on different network segments and resumable data transmission upon network disconnection
- Fanless full-body heat dissipation; operating temperature range: –20°C to +65°C (with disks); –40°C to +70°C (without disks)
- Applicable to the ePolice system, checkpoint system, highway toll collection system, and road detection system
- Description
Description
Technical Spec
| Operating system | Embedded Linux operating system |
| Memory | 2 GB |
| Operating hours | 24/7 |
| Number of channels | 16 |
| Access video format | H.264, H.265 |
| Image format | JPEG |
| Disk port | 4 internal SATA ports, supporting 1/2/3/4/6/8/12 TB |
| Audio port | 1 input and 1 output |
| Video input | Supports access and storage of 16 channels of video at 1080p, 4K, and other resolutions |
| Video output | 1 x VGA port, 1 x HDMI port |
| Network port | 18 GE electrical ports and 2 GE optical ports |
| RS-232 | 2 |
| RS-485 | 4 |
| BDS/GPS | 1 (optional) |
| I/O | 4 inputs, 4 outputs |
| USB | 2 x USB2.0 and 1 x USB3.0 |
| Time calibration | NTP, BDS, and GPS |
| Interactive control | Remote control on the web interface; local interface operation |
| Protocol | ONVIF, GB/T 28181, TCP/IP, UDP, RTSP, HTTP, SNMP, and GA/T 1400 |
| Cyber security | Password protection, interface protection, communication port matrix scanning, virus scanning, package integrity check, etc. |
| Dimensions (H x W x D) | 100 mm x 287 mm x 361 mm |
| Power consumption | < 25 W (including one disk; varies depending on the disk model) |
| Voltage | DC12V±10% |
| Operating temperature | –20°C to +65°C (with disks), –40°C to +70°C (without disks) |
| Humidity | 10% to 90% (non-condensing) |
