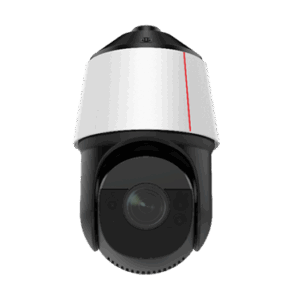

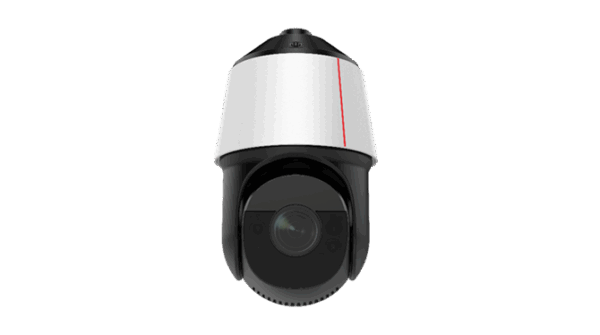

HWT-M6781-10-GZ40
2T 8MP AI PTZ Dome Camera
- 2 TOPS computing power
- Supports omni-data structuring, automatic tracking, behavior analysis, crowd flow analysis, target detection, person detection, object classification (motor vehicle, non-motorized vehicle, and pedestrian), vehicle detection, vehicle event detection, and traffic flow statistics
- Supports backlight adaptation and overcast adaptation
- 1/1.8″ CMOS sensor
- Online loading and upgrade of algorithms
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- Built-in GPS, BDS, and time calibration modules
- Built-in electronic compass and accelerometer, reflecting the PTZ direction and tilt range in real time Supports omni-data structuring
- Supports omni-data structuring
- Description
Description
Technical Spec
| Max resolution | 8MP 3840(H)*2160(V) |
| Sensor size | 1/1.8″ CMOS |
| Shutter speed | Supports slow shutter. Slow shutter speed levels: 1/3, 1/4, 1/8, 1/12, 1/15 Non-slow shutter speed levels: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Non-slow shutter speed levels in full intelligence or face checkpoint mode: 1/25, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Non-slow shutter speed levels in full intelligence or micro checkpoint mode: 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Full intelligence: Slow shutter is not supported. Face checkpoint: 1/100. Micro checkpoint: 1/100 Face checkpoint: 1/100 Micro checkpoint: 1/250 |
| Day/Night mode | Supported; automatic (ICR), Color, B/W, and scheduled (default: automatic); sensitivity level: high (default), medium, and low; image triggering/internal triggering |
| Gain control | Manual exposure: 101 levels configurable from 0 to 100 (step: 1); The default value is 0. |
| White balance | Auto/Auto tracking/Manual/OnePush |
| Digital noise reduction | 2D/3D noise reduction |
| WDR | 120dB |
| Highlight compensation | Supported |
| EIS | Supported. Sensitivity levels are supported. |
| Optical Defogging/Algorithm-assisted Defogging | Supported/Supported |
| Exposure compensation | Supported |
| Exposure mode | Supported |
| SNR | >45dB |
| Motorized focus | Supported |
| Day/Night focus compensation | Supported |
| Backlight adaptation | Supported |
| Overcast adaptation | Supported |
| Image correction | Vertical, horizontal, or both |
| Digital zoom/Optical zoom | 16X/40X |
| Privacy mask | Supported |
| eCompass | Supported |
| GPS | Supported |
| Power type | AC24V,POE(IEEE 802.3 BT) |
